SEAT  FRONT SEAT CUSHION HEATER  INSPECTION

1.542,0.198 1.875,0.406 0.333,0.208 1.531,1.708 1.865,1.917 0.333,0.208 1.531,3.073 1.865,3.281 0.333,0.208 0.135,0.115 0.354,0.354 0.219,0.24 10 false *a 1.646,1.74 2.063,1.938 0.417,0.198 10 false E 1.656,3.104 1.906,3.25 0.25,0.146 10 false F 1.594,0.229 1.979,0.438 0.385,0.208 10 false R26

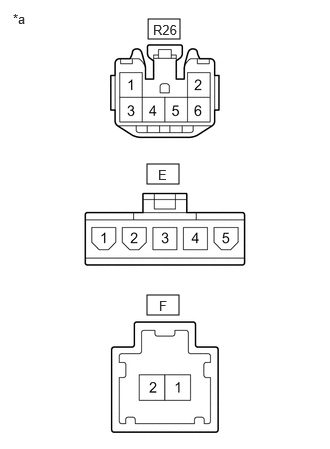

*a	Component without harness connected (Front Seat Cushion Heater Assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
R26-1 - E-1	Always	Below 1 Ω
R26-6 - E-2	Always	Below 1 Ω
R26-4 - R26-5	Seat heater temperature 25°C (77°F)	7.2 to 8.8 kΩ
E-5 - R26-2	Always	Below 1 Ω
E-3 - R26-2	Seat heater temperature 23°C (73°F)	2.71 to 3.31 Ω
E-3 - F-2	Always	Below 1 Ω
F-1 - R26-2	Always	Below 1 Ω

If the result is not as specified, replace the separate type front seat cushion heater assembly LH.

1.542,0.198 1.875,0.406 0.333,0.208 1.531,1.708 1.865,1.917 0.333,0.208 1.531,3.073 1.865,3.281 0.333,0.208 0.135,0.115 0.354,0.354 0.219,0.24 10 false *a 1.635,1.74 2.156,1.969 0.521,0.229 10 false G 1.656,3.104 1.906,3.25 0.25,0.146 10 false H 1.625,0.229 1.875,0.375 0.25,0.146 10 false R6

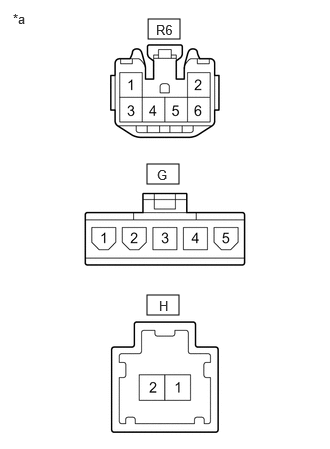

*a	Component without harness connected (Front Seat Cushion Heater Assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
R6-1 - G-1	Always	Below 1 Ω
R6-6 - G-2	Always	Below 1 Ω
R6-4 - R6-5	Seat heater temperature 25°C (77°F)	7.2 to 8.8 kΩ
G-5 - R6-2	Always	Below 1 Ω
G-3 - R6-2	Seat heater temperature 23°C (73°F)	2.71 to 3.31 Ω
G-3 - H-2	Always	Below 1 Ω
H-1 - R6-2	Always	Below 1 Ω

If the result is not as specified, replace the separate type front seat cushion heater assembly RH.
