SEAT LUMBAR SUPPORT ADJUSTER ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

Hide Display 71759D 1.INSTALL FRONT NO. 2 SEATBACK HOOK

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0226,

Hide Display 72760D 2.INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY

a.

w/o Climate Control Seat System:

i.

B609148

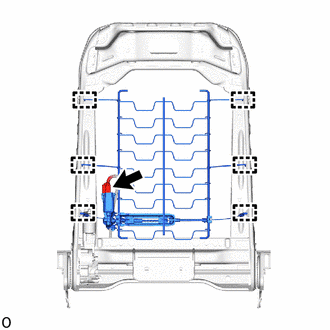

Engage the 6 hooks to install the lumbar support adjuster assembly.

ii.

Connect the connector.

b.

w/ Climate Control Seat System:

i.

B630697C01

0,0 0,0 false

V113147

Install in this Direction

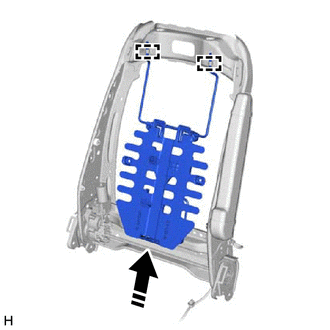

Engage the 2 guides to install the lumbar support adjuster assembly as shown in the illustration.

ii.

B630686

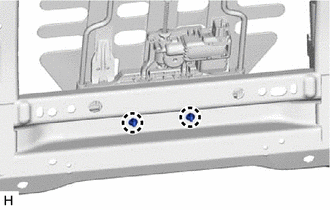

Engage the 2 claws.

iii.

B518938

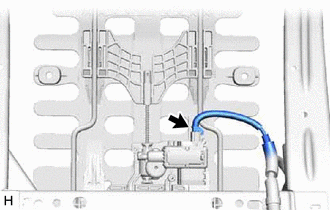

Connect the connector.

Hide Display 85867A 3.INSTALL SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0227,

Hide Display 4.INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0187,

Hide Display 71931 5.INSTALL FRONT SEAT HEADREST SUPPORT

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0188,

Hide Display 71876G 6.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0230,

Hide Display 7.INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0189,

Hide Display 71862 8.INSTALL FRONT SEAT INNER CUSHION SHIELD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0194,

Hide Display 71812D 9.INSTALL FRONT SEAT CUSHION SHIELD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0195,

Hide Display 71868A 10.INSTALL FRONT SEAT INNER NO. 1 CUSHION SHIELD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0196,

Hide Display 71074S 11.CONNECT SEPARATE TYPE FRONT SEATBACK COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>REASSEMBLY202111,999999,_58,_111839,_0500775,RM100000001Z3EI_02_0198,

Hide Display 12.INSTALL FRONT SEAT ASSEMBLY

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for SFTM Made Power Seat)>INSTALLATION202111,202203,_58,_111839,_0500775,RM100000001Z3EK,202203,999999,_58,_111839,_0500775,RM1000000022JTB,
