RM38N0EC _58 Vehicle Interior _111839 SEAT _0500777 POWER SEAT SWITCH A

SEAT POWER SEAT SWITCH INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

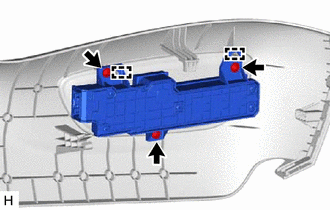

Hide Display 84922C 1.INSTALL FRONT POWER SEAT SWITCH

Engage the 2 guides.

Install the front power seat switch to the front seat cushion shield with the 3 screws.

Hide Display 84921A 2.INSTALL RECLINING POWER SEAT SWITCH KNOB

Hide Display 84921B 3.INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

Hide Display 71812D 4.INSTALL FRONT SEAT CUSHION SHIELD

Hide Display 71868A 5.INSTALL FRONT SEAT INNER NO. 1 CUSHION SHIELD

Hide Display 71074S 6.CONNECT SEPARATE TYPE FRONT SEATBACK COVER

Hide Display 7.INSTALL FRONT SEAT ASSEMBLY
