SEAT  FRONT SEAT ASSEMBLY(for SFTM Made Power Seat)  REASSEMBLY

Install the front seat cushion panel sub-assembly to the front seat adjuster assembly with the 4 screws.

Engage the 8 hooks to install the front seat cushion spring sub-assembly to the front seat adjuster assembly.

0,0 0,0 false

Wire Harness Clamp

Install the seat cushion climate control blower to the seat cushion blower fan adapter with the 4 screws.

Install the 4 screws.

Connect the connector and engage the wire harness clamp.

0,0 0,0 false

Install in this Direction

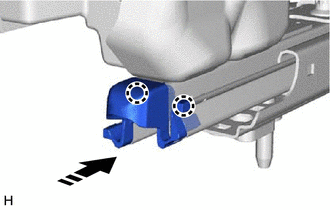

Engage the 2 claws to install the seat track upper rail cover LH as shown in the illustration.

HINT:

Use the same procedure for the both sides.

Engage the 2 claws.

1.792,0.469 2.573,0.167 true 0.542,2.917 0.656,2.156 true 1.76,3.01 2.635,2.698 true 2.604,0.031 2.917,0.188 0.313,0.156 10 false *a 0.448,2.948 0.76,3.104 0.313,0.156 10 false *b 1.552,2.948 1.74,3.146 0.188,0.198 10 false *b

*a	Hook
*b	Guide

Engage the 2 guides.

1.646,2.042 1.802,2.24 0.156,0.198 10 false 1 2.198,2.031 2.354,2.229 0.156,0.198 10 false 3 1.104,2.021 1.26,2.219 0.156,0.198 10 false 2 1.667,1 1.823,1.198 0.156,0.198 10 false 4 1.146,1 1.302,1.198 0.156,0.198 10 false 5 1.042,0.458 1.156,0.656 0.115,0.198 10 false 8 2.156,1 2.313,1.198 0.156,0.198 10 false 6 0.698,1.073 0.854,1.271 0.156,0.198 10 false 7 1.01,1.594 1.135,1.771 0.125,0.177 10 false 9 0.573,2.104 1.094,2.271 0.521,0.167 10 false 10 0.552,2.479 0.979,2.677 0.427,0.198 10 false 11 2.156,0.448 2.542,0.625 0.385,0.177 10 false 13 2.563,1.073 2.958,1.26 0.396,0.188 10 false 12 2.198,1.583 2.563,1.76 0.365,0.177 10 false 14 2.625,2.094 3.052,2.281 0.427,0.188 10 false 15 2.646,2.479 3.094,2.656 0.448,0.177 10 false 16

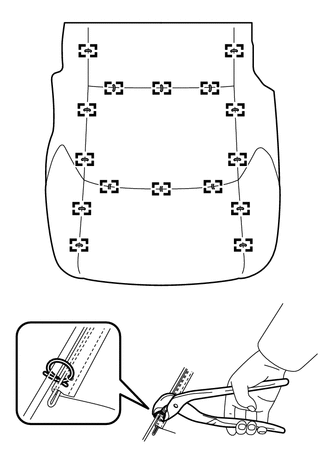

Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad with 13 new hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the separate type front seat cushion cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.

for Front Passenger Side:

i.

Engage the claw to install the occupant detection sensor.

Engage the 11 hooks to install the separate type front seat cushion cover with pad to the separate type front seat cushion spring assembly.

w/ Seat Heater Switch:

i.

Connect the connector.

w/o Climate Control Seat System:

i.

Engage the 2 clamps to install the 2 front No. 2 seatback hooks to the front seatback frame sub-assembly.

w/ Climate Control Seat System:

i.

Engage the 2 clamps to install the 2 front No. 2 seatback hooks to the front seatback frame sub-assembly.

w/o Climate Control Seat System:

i.

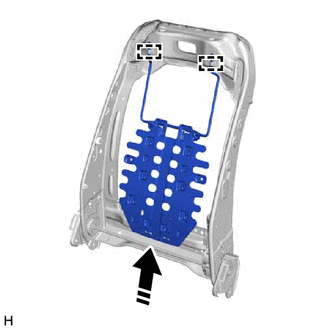

Engage the 6 hooks to install the front seatback spring sub-assembly to the front seatback frame sub-assembly.

w/ Climate Control Seat System:

i.

0,0 0,0 false

Remove in this Direction

Engage the 2 guides as shown in the illustration.

ii.

Engage the 2 claws to install the front seatback spring sub-assembly to the front seatback frame sub-assembly.

Install the seatback climate control blower to the seatback blower fan adapter with the 4 screws.

Engage the 3 hooks and 2 claws.

HINT:

Engage the 3 hooks first.

Connect the connector and engage the wire harness clamp.

HINT:

Connect the connector first.

1.01,0.656 1.167,0.854 0.156,0.198 10 false 6 2.125,2.729 2.604,2.927 0.479,0.198 10 false 15 2.5,1.927 2.865,2.104 0.365,0.177 10 false 13 2.479,1.552 2.875,1.74 0.396,0.188 10 false 10 1.281,1.417 1.438,1.615 0.156,0.198 10 false 2 1.688,1.406 1.844,1.604 0.156,0.198 10 false 1 2.125,1.417 2.281,1.615 0.156,0.198 10 false 3 0.927,1.063 1.083,1.26 0.156,0.198 10 false 5 0.906,1.552 1.063,1.75 0.156,0.198 10 false 4 0.885,1.938 1.042,2.135 0.156,0.198 10 false 7 0.875,2.313 1.031,2.51 0.156,0.198 10 false 8 1.198,2.729 1.354,2.927 0.156,0.198 10 false 9 2.458,1.063 2.854,1.25 0.396,0.188 10 false 11 2.365,0.656 2.76,0.844 0.396,0.188 10 false 12 2.51,2.313 2.875,2.49 0.365,0.177 10 false 14

Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback pad with 15 new hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the separate type front seatback cover.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

Engage the 2 claws to install the 2 front seat headrest supports.

Pass each wire harness through the hole of the separate type front seatback cover.

Engage the hook.

Close the 2 fasteners.

Engage the guide and install the LH seat reclining adjuster inside cover to the separate type front seatback assembly.

Engage the guide.

2.417,1.417 3.167,1.417 true 3.083,1.417 3.083,3 3.083,3 2.5,3 true 2.458,2.333 3.083,2.333 true 0.167,2.75 1.25,2.75 1.25,2.75 1.25,2.5 true 0.333,2.75 0.333,2.948 0.333,2.948 0.917,2.948 true 1.281,3.031 1.281,3.219 true 0.042,2.667 0.198,2.865 0.156,0.198 10 false B 3.229,1.333 3.385,1.531 0.156,0.198 10 false A 1.25,3.229 1.5,3.417 0.25,0.188 10 false D 1.885,2.708 2.052,2.896 0.167,0.188 10 true C 0.708,2.469 0.865,2.656 0.156,0.188 10 true E

Connect the connector (C).

Engage the hook.

Engage the 4 claws to install the reclining power seat switch knob.

Engage the 4 claws to install the slide and vertical power seat switch knob.

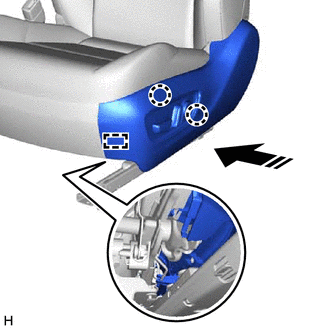

Engage the claw and install the LH seat reclining adjuster inside cover to the front seat inner cushion shield.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Engage the guide as shown in the illustration.

Install the front seat inner cushion shield with the 2 screws.

Connect the front power seat switch connector.

0,0 0,0 false

Install in this Direction

Engage the guide.

0,0 0,0 false

Install in this Direction

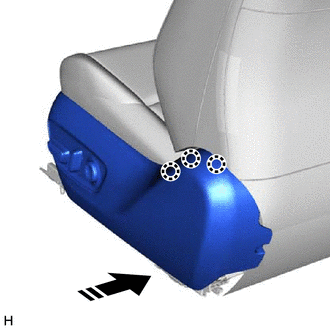

Engage the 3 claws as shown in the illustration.

Install the front seat cushion shield with the 2 screws.

1.021,3.167 1.021,2.292 true 2.646,2.448 2.646,1.49 2.646,1.49 3.115,1.49 true 3.073,1.823 2.646,1.823 true 2.969,2.01 2.646,2.01 true 0.99,3.177 1.146,3.375 0.156,0.198 10 false A 2.615,2.479 2.771,2.677 0.156,0.198 10 false B

Engage the 5 claws and 2 guides (B).

Connect the 2 rubber bands of the separate type front seatback cover.
