RM38N0EC _58 Vehicle Interior _111839 SEAT _0500762 REAR SEAT ASSEMBLY A

SEAT  REAR SEAT ASSEMBLY  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 73178A 1.REMOVE SEAT BELT ANCHOR COVER CAP (for RH Side)

a.
B628752

Disengage the 2 claws and 2 guides to remove the rear seat shoulder belt cover and seat belt anchor cover cap.


b.
B628753C01
0,0 0,0 false
V113147

Remove in this Direction

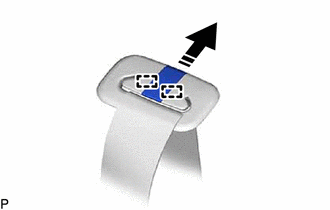

Disengage the 2 guides to remove the seat belt anchor cover cap as shown in the illustration.


Hide 73373 2.REMOVE REAR SEAT SHOULDER BELT COVER (for RH Side)

a.
B628755

Remove the rear seat shoulder belt cover.


Hide 72668E 3.REMOVE REAR SEATBACK LOWER LOCK BEZEL RH (for RH Side)

a.
B628756C01
0,0 0,0 false
V113147

Remove in this Direction

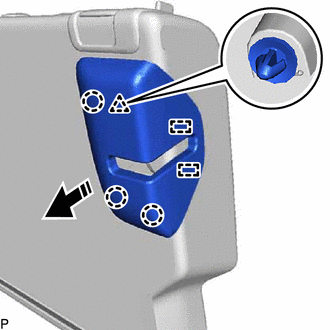

Disengage the 3 claws, clip and 2 guides as shown in the illustration to remove the rear seatback lower lock bezel RH.


Hide 72667A 4.REMOVE REAR SEATBACK UPPER LOCK BEZEL RH (for RH Side)

a.
B628758

Disengage the 4 claws to remove the rear seatback upper lock bezel RH.


Hide 72868B 5.REMOVE CENTER ARMREST HINGE COVER (for RH Side)

a.

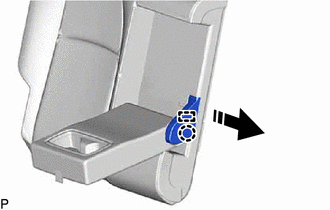

B628759C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the claw and guide as shown in the illustration to remove the center armrest hinge cover.


Hide 72830 6.REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (for RH Side)

a.
B628760

Remove the bolt and washer.


b.

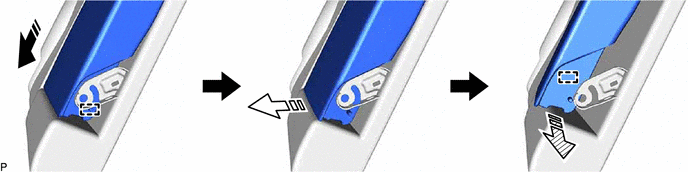

Pull in the direction indicated by the arrow (1) shown in the illustration to disengage the guide.

B628761C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V113149

Remove in this Direction (3) - -



c.

Pull in the direction indicated by the arrow (2) shown in the illustration.


d.

Pull in the direction indicated by the arrow (3) shown in the illustration to disengage the guide and remove the rear seat center armrest assembly.


Hide 72806B 7.REMOVE REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY (for RH Side)

a.
B628762C01
0,0 0,0 false
V113147

Remove in this Direction

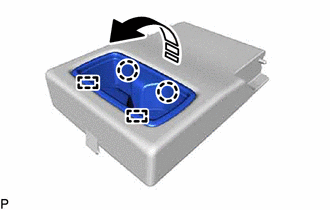

Disengage the 2 claws and 2 guides as shown in the illustration to remove the rear seat center armrest cup holder sub-assembly.


Hide 8.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for RH Side)

a.
B628764

Disengage the 2 hooks.


b.
B628765

Remove the 2 hog rings.


c.
B628766C02
0,0 0,0 false
V100155

Fastener

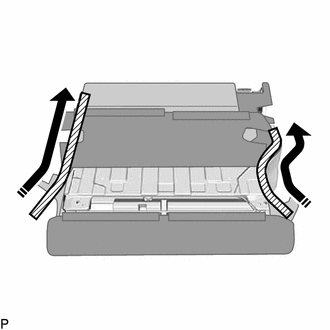

Open the 2 fasteners as shown in the illustration.


d.
B628768C01
0,0 0,0 false
V113147

Remove in this Direction

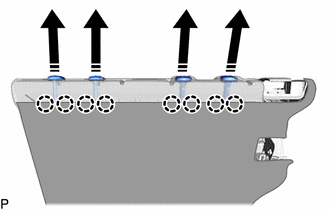

Disengage the 8 claws as shown in the illustration and remove the 4 rear seat headrest supports.


e.

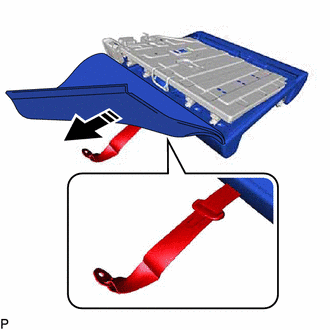

B628770C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the separate type rear seatback cover with pad from the rear seatback frame sub-assembly RH as shown in the illustration.


Hide 71077S 9.REMOVE SEPARATE TYPE REAR SEATBACK COVER (for RH Side)

a.
B628772

Disengage the 3 hooks.


b.

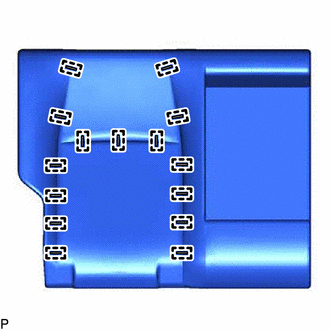

B628773

Remove the 15 hog rings and separate type rear seatback cover from the separate type rear seatback pad.


Hide 72630C 11.REMOVE REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)

a.
B628774

Remove the 2 screws.


b.
B628775

Remove the 3 bolts.


c.

Disengage the guide and rear seatback lock assembly RH.

HINT:

Remove the rear seat lock control lever sub-assembly RH together with the rear seatback lock assembly RH.



Hide 72057 12.REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH (for RH Side)

a.
B628776C01
1.188,1.938 1.042,2.708 1.042,2.708 1.708,1.688 true 0.813,1.188 1.552,0.979 true 0.938,2.708 1.25,2.865 0.313,0.156 10 false *a 0.667,1.125 0.979,1.281 0.313,0.156 10 false *b
*a Hook
*b Guide


Disengage the 2 hooks and guide and remove the rear seat lock control lever sub-assembly RH from the rear seatback lock assembly RH.


Hide 72668F 13.REMOVE REAR SEATBACK LOWER LOCK BEZEL LH (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 72667B 14.REMOVE REAR SEATBACK UPPER LOCK BEZEL LH (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 15.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for LH Side)

a.
B628777

Disengage the hook.


b.
B628778

Remove the 2 hog rings.


c.
B628779C02
0,0 0,0 false
V100155

Fastener

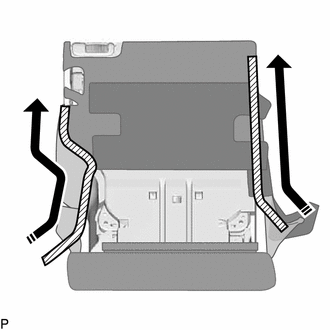

Open the 2 fasteners as shown in the illustration.


d.
B628781C01
0,0 0,0 false
V113147

Remove in this Direction

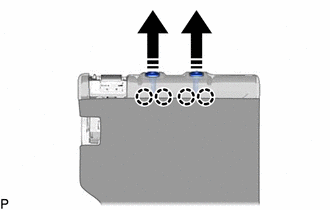

Disengage the 4 claws as shown in the illustration and remove the 2 rear seat headrest supports.


e.

Remove the separate type rear seatback cover with pad from the rear seatback frame sub-assembly LH.


Hide 71078S 16.REMOVE SEPARATE TYPE REAR SEATBACK COVER (for LH Side)

a.

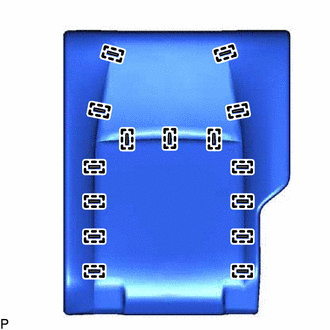

B628783

Remove the 15 hog rings and separate type rear seatback cover from the separate type rear seatback pad.


Hide 72640A 17.REMOVE REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 72058A 18.REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH (for LH Side)

HINT:

Use the same procedure as for the RH side.


Hide 71075B 19.REMOVE BENCH TYPE REAR SEAT CUSHION COVER

a.

for Gasoline Model:

i.

Disengage the 20 hooks.

B595512


ii.

Remove the 32 hog rings and bench type rear seat cushion cover from the rear seat cushion pad.

B628784



b.

for HV Model:

i.

Disengage the 16 hooks.

B585406


ii.

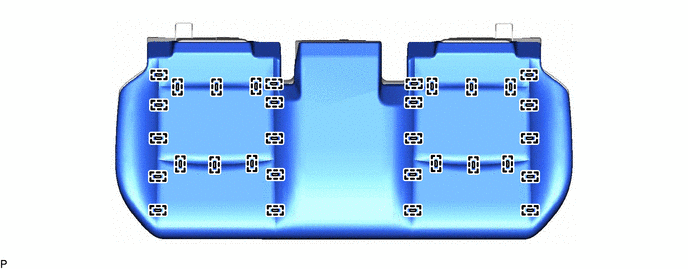

Remove the 32 hog rings and bench type rear seat cushion cover from the rear seat cushion pad.

B630003
