RM38N0EC _58 Vehicle Interior _111842 POWER OUTLETS (INT) _0500720 POWER OUTLET SOCKET(for Console Box Front Side) A

POWER OUTLETS (INT)  POWER OUTLET SOCKET(for Console Box Front Side)  INSTALLATION


PROCEDURE

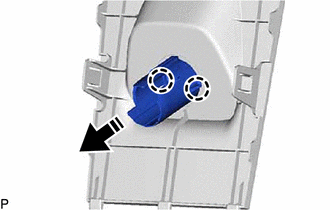

Hide 85535B 1.INSTALL NO. 1 POWER OUTLET SOCKET COVER

a.
E474501C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws to install the No. 1 power outlet socket cover as shown in the illustration.

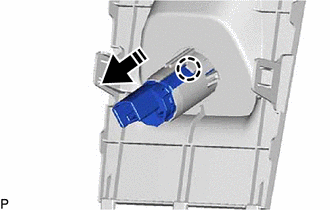

Hide 85530 2.INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY

a.
E474499C01
0,0 0,0 false
V113147

Install in this Direction


Engage the claw to install the No. 1 power outlet socket assembly as shown in the illustration.


Hide 58913A 3.INSTALL NO. 3 BOX PANEL

a.

Connect the connector.


b.

Engage the 3 guides, 2 claws and 2 clips to install the No. 3 box panel.
