RM38N0EC _58 Vehicle Interior _111842 POWER OUTLETS (INT) _0500720 POWER OUTLET SOCKET(for Console Box Front Side) A

POWER OUTLETS (INT) POWER OUTLET SOCKET(for Console Box Front Side) REMOVAL

PROCEDURE

Hide Display 58835C 1.REMOVE CONSOLE BOX ORNAMENT (w/o Seat Heater System)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202111,999999,_58,_111843,_0501136,RM100000001Z534_01_0043,

Hide Display 2.REMOVE CONSOLE BOX ORNAMENT (w/ Seat Heater System)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202111,999999,_58,_111843,_0501136,RM100000001Z534_01_0040,

Hide Display 58825A 3.REMOVE CONSOLE BOX POCKET

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202111,999999,_58,_111843,_0501136,RM100000001Z534_01_0005,

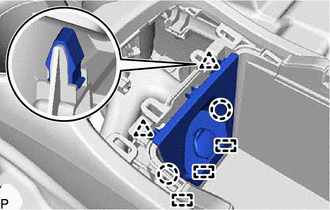

Hide Display 58913A 4.REMOVE NO. 3 BOX PANEL

Disengage the 2 clips, 2 claws and 3 guides to separate the No. 3 box panel.

Disconnect the connector to remove the No. 3 box panel.

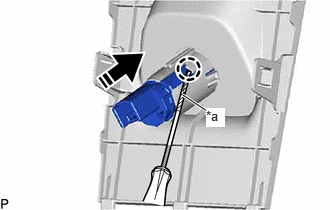

Hide Display 85530 5.REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

1.906,0.99 2.188,1.177 true 2.146,1.125 2.344,1.323 0.198,0.198 10 true *a

*a	Protective Tape
	Remove in this Direction

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the No. 1 power outlet socket assembly as shown in the illustration.

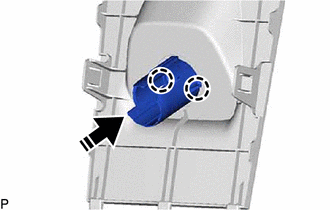

Hide Display 85535B 6.REMOVE NO. 1 POWER OUTLET SOCKET COVER

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws and remove the No. 1 power outlet socket cover as shown in the illustration.
