AUDIO / VIDEO  PILLAR SPEAKER  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 86160P 1.INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

NOTICE:

Do not touch the speaker cone.


a.

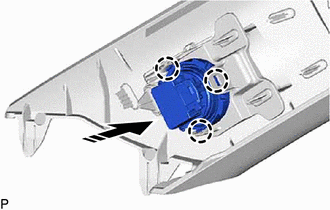

E474804
V113147

Install in this Direction


Engage the 3 claws to install the front No. 2 speaker assembly as shown in the illustration.
