RM38N0EC
_56
Audio / Visual / Telematics
_111822
AUDIO / VIDEO
_0500655
REAR DOOR SPEAKER
A
AUDIO / VIDEO REAR DOOR SPEAKER REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
69278C
1.REMOVE REAR DOOR INSIDE HANDLE BEZEL
74222C
2.REMOVE REAR DOOR ARMREST COVER
67604
3.REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
86160B
4.REMOVE REAR SPEAKER ASSEMBLY
- NOTICE:
-
Do not touch the speaker cone.
a.

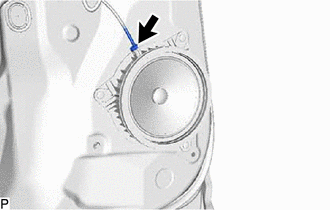

Disconnect the connector.
b.

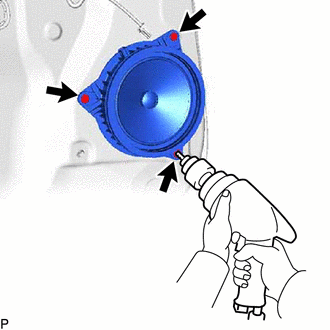

Using a drill bit with a diameter of less than 5 mm (0.197 in.), drill out the 3 rivet heads.
- NOTICE:
- ·
Do not drill the rivet at an angle as this will cause damage to the drill and rivet installation hole. Line up the drill with the rivet, and carefully drill out the rivet head.
·Be careful as the drilled rivet will be very hot.
c.

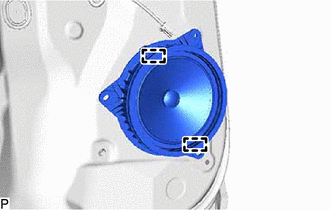

Disengage the 2 guides to remove the rear speaker assembly.
