AUDIO / VIDEO FRONT DOOR SPEAKER REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
69278B
1.REMOVE FRONT DOOR INSIDE HANDLE BEZEL
74222A
2.REMOVE FRONT DOOR ARMREST COVER
81230
3.REMOVE COURTESY LIGHT ASSEMBLY
67602
4.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
86160
5.REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
- NOTICE:
-
Do not touch the speaker cone.

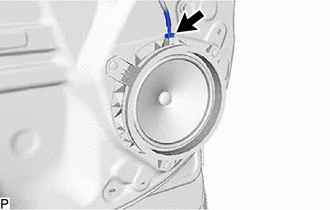

Disconnect the connector.

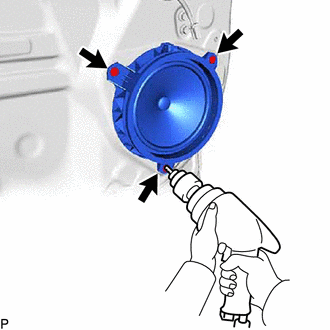

Using a drill bit with a diameter of less than 5 mm (0.197 in.), drill out the 3 rivet heads.
- NOTICE:
- ·
Do not drill the rivet at an angle as this will cause damage to the drill and rivet installation hole. Line up the drill with the rivet, and carefully drill out the rivet head.
·Be careful as the drilled rivet will be very hot.
Continue drilling and push out the remaining rivet fragments.
Using a vacuum cleaner, remove the rivet fragments and shavings from the inside of the door.

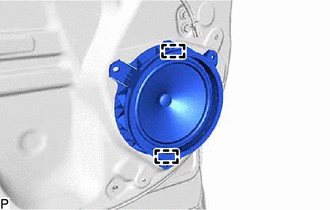

Disengage the 2 guides to remove the front No. 1 speaker assembly.
