RM38N0EC
_56
Audio / Visual / Telematics
_111822
AUDIO / VIDEO
_0500653
LUGGAGE SPEAKER
G
AUDIO / VIDEO LUGGAGE SPEAKER INSPECTION
PROCEDURE
86150
1.INSPECT NO. 1 SPEAKER ASSEMBLY WITH BOX
a.
With the speaker installed, check that there is no looseness or other abnormalities.
b.
Check that there is no foreign matter in the speaker, no tears on the speaker cone or other abnormalities.
c.
1.917,2.667 1.802,2.052
true
1.5,2.667 1.615,2.052
true
1.083,2.667 1.427,2.052
true
2.333,2.667 1.99,2.052
true
0.167,0.167 0.5,0.417
0.333,0.25
10
false
*a
2.25,2.708 2.708,2.906
0.458,0.198
10
false
WF-
1.813,2.708 2.271,2.906
0.458,0.198
10
false
WF+
1.406,2.708 1.865,2.906
0.458,0.198
10
false
WF-
0.99,2.708 1.448,2.906
0.458,0.198
10
false
WF+

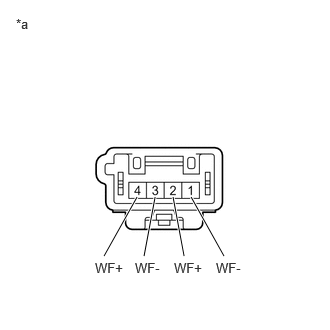

| *a | Component without harness connected
(No. 1 Speaker Assembly With Box) |
Measure the resistance of the speaker.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 (WF-) - 2 (WF+) Always 4.3 to 6.5 Ω 3 (WF-) - 4 (WF+) Always 4.3 to 6.5 Ω
If the result is not as specified, replace the speaker.
