NAVIGATION / MULTI INFO DISPLAY  NAVIGATION RECEIVER  INSTALLATION


PROCEDURE

Hide 86140A 1.INSTALL NAVIGATION RECEIVER ASSEMBLY

Hide 86212C 3.INSTALL NO. 2 RADIO RECEIVER BRACKET

a.

Install the No. 2 radio receiver bracket with the 2 screws.

Torque:
3.5 N*m (36 kgf*cm, 31 in.*lbf)


Hide 86211J 4.INSTALL NO. 1 RADIO RECEIVER BRACKET

a.

Install the No. 1 radio receiver bracket with the 2 screws.

Torque:
3.5 N*m (36 kgf*cm, 31 in.*lbf)


Hide 5.INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET

a.

Connect each connector.


b.
E474852C01
0,0 0,0 false
V113147

Install in this Direction

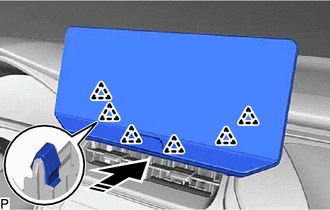

Engage the 6 clips as shown in the illustration.


c.
E474848N01
0.104,0.219 0.26,0.417 0.156,0.198 10 true 1 3.156,0.26 3.313,0.458 0.156,0.198 10 true 2 3.083,0.76 3.24,0.958 0.156,0.198 10 true 3 0.198,0.698 0.354,0.896 0.156,0.198 10 true 4

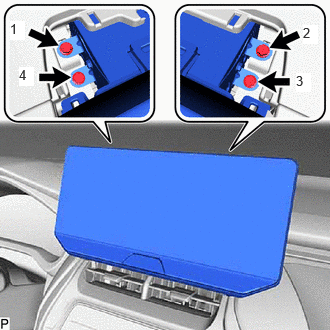

Install the navigation receiver assembly with bracket with the 4 bolts.

Torque:
12 N*m (122 kgf*cm, 9 ft.*lbf)

HINT:

Install the bolts in the order shown in the illustration.
