RM38N0EC _56 Audio / Visual / Telematics _111826 CELLULAR COMMUNICATION _0500291 TOLL COLLECTION ECU A

CELLULAR COMMUNICATION  TOLL COLLECTION ECU  INSTALLATION


PROCEDURE

Hide 1. PRECAUTION

a.

When installing the toll collection ECU assembly and toll collection ECU seal tape:

HINT:

When installing the toll collection ECU assembly or toll collection ECU seal tape, heat the toll collection ECU assembly, toll collection ECU seal tape or windshield glass using a hair dryer.


i.

Using a hair dryer, heat the installation area.

CAUTION:
·

Do not touch the hair dryer or the heated portions of the components.

·

Touching the hair dryer could result in burns.

·

Touching the heated portions of the components and remaining in contact for a long time could result in burns.



NOTICE:
·

The most appropriate temperature for installing the toll collection ECU seal tape is 15 °C (59 °F).

·

When the ambient temperature is below 15°C (59°F), perform the installation procedure after warming the toll collection ECU assembly surface (installation surface of the toll collection ECU assembly) and tape to between 20 and 30°C (68 and 86°F) using a hair dryer.

·

When the temperature is low, the tape turns stiff and falls off easily. When the temperature is high, the tape loses elasticity.

·

Do not heat the toll collection ECU assembly excessively.





Hide 2.INSTALL TOLL COLLECTION ECU SEAL TAPE

a.

When reusing the toll collection ECU assembly:

i.

Clean the toll collection ECU assembly with a piece of cloth.


ii.

Remove one side of the release paper of new toll collection ECU seal tape.

HINT:

Do not touch the toll collection ECU seal tape surfaces.



iii.
E468841

Install the toll collection ECU seal tape to the toll collection ECU assembly as shown in the illustration.

NOTICE:

Attach securely so that the toll collection ECU seal tape will not shift or peel off.




Hide 86980 3.INSTALL TOLL COLLECTION ECU ASSEMBLY

a.

Clean the windshield glass with a piece of cloth.

HINT:

Make sure that there is no toll collection ECU seal tape residue remaining on the windshield glass. If there is, remove the residue.


NOTICE:
·

Installing the toll collection ECU assembly with some double-sided tape remaining may cause poor adhesion. Perform this procedure until sufficiently removed it.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




b.

Remove the release paper.

HINT:

Do not touch the toll collection ECU seal tape surfaces.



c.

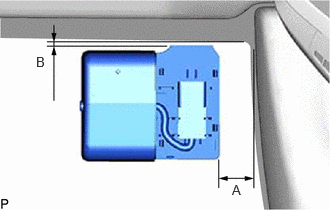

E489756N01
2.417,1.896 2.573,2.094 0.156,0.198 10 false A 0.375,0.563 0.531,0.76 0.156,0.198 10 false B

Install the toll collection ECU assembly as shown in the illustration.

Standard Clearance:
Area Measurement
A 22 to 28 mm (0.866 to 1.10 in.)
B -1 to 5 mm (-0.0394 to 0.197 in.)


HINT:
·

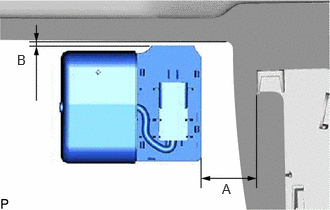

E489755N01
2.313,1.885 2.469,2.083 0.156,0.198 10 false A 0.177,0.542 0.333,0.74 0.156,0.198 10 false B

When the forward recognition cover is not installed:

Standard Clearance:
Area Measurement
A 33 to 39 mm (1.30 to 1.54 in.)
B -1 to 5 mm (-0.0394 to 0.197 in.)


·

Press the toll collection ECU assembly with a force of 40 N (4.0 kgf) for 5 seconds to securely install it to the windshield glass.




d.

Connect the connector.


e.

Engage the 4 claws to install the cover.
