CELLULAR COMMUNICATION  TOLL COLLECTION ECU  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

a.

When the toll collection ECU assembly or toll collection ECU seal tape is difficult to remove:

HINT:

When removing the toll collection ECU assembly or toll collection ECU seal tape, heat the toll collection ECU assembly, toll collection ECU seal tape or windshield glass using a hair dryer.


i.

Using a hair dryer, heat the toll collection ECU seal tape area.

CAUTION:
·

Do not touch the hair dryer or the heated portions of the components.

·

Touching the hair dryer could result in burns.

·

Touching the heated portions of the components and remaining in contact for a long time could result in burns.



NOTICE:

Do not heat the toll collection ECU assembly or toll collection ECU seal tape excessively.




Hide 86980 2.REMOVE TOLL COLLECTION ECU ASSEMBLY

a.

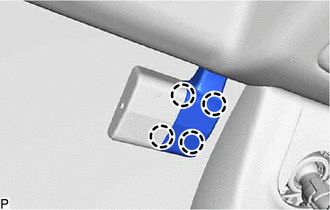

E489753

Disengage the 4 claws to remove the cover.


b.

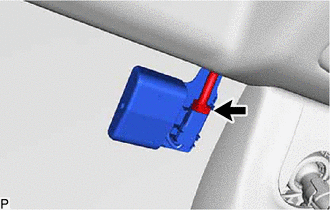

E489754

Disconnect the connector.


c.

Remove the toll collection ECU assembly.


Hide 3.REMOVE TOLL COLLECTION ECU SEAL TAPE

a.

When reusing the toll collection ECU assembly:

i.

Remove the toll collection ECU seal tape from the toll collection ECU assembly.
