EXTERIOR PANELS / TRIM  BLACK OUT TAPE(for Rear Door)  INSTALLATION

1. REPAIR INSTRUCTION

75954A 2.INSTALL REAR INNER BLACK OUT TAPE

a.

Refer to the illustration to position a new rear inner black out tape.

5,1.74 5.427,1.719 false 5.885,0.979 6.313,0.958 false 6.365,3.406 6.49,3.146 false 4.938,2.396 5.25,2.552 0.313,0.156 10 false *A 6.104,2.396 6.417,2.552 0.313,0.156 10 false *B 4.823,1.635 5.135,1.792 0.313,0.156 10 false *a 6.458,2.979 6.771,3.135 0.313,0.156 10 false *b 6.344,0.865 6.656,1.021 0.313,0.156 10 false *a 1.271,2.313 1.583,2.469 0.313,0.156 10 false a 1.708,2.677 1.865,2.865 0.156,0.188 10 true a 0.635,0.906 0.802,1.115 0.167,0.208 10 false A 5.219,2.104 5.385,2.313 0.167,0.208 10 false B 6.063,0.094 6.229,0.302 0.167,0.208 10 false C 4.844,0.177 5.219,0.406 0.375,0.229 10 true a-a

*A	LH Side	*B	RH Side
*a	Edge of Curved Surface	*b	Triangle

Standard Measurement:

Area	Measurement	Area	Measurement
A	5.0 mm (0.197 in.)	B	1.0 mm (0.0394 in.)
C	1.6 to 3.6 mm (0.0630 to 0.142 in.)	-	-

b.

Remove the release paper and apply the rear inner black out tape.

75988E 3.INSTALL REAR DOOR OUTSIDE STRIPE

a.

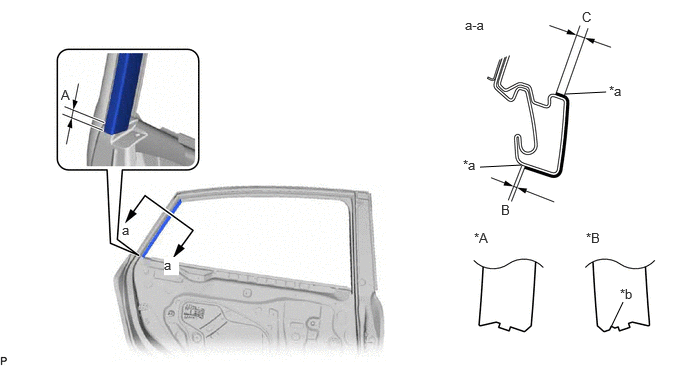

Refer to the illustration to position a new rear door outside stripe.

5.125,1.323 5.406,1.104 false 6.229,1.271 6.51,1.052 false 6.125,2.906 6.354,2.854 false 4.823,2.208 5.135,2.365 0.313,0.156 10 false *A 6.063,2.198 6.375,2.354 0.313,0.156 10 false *B 4.948,1.271 5.26,1.427 0.313,0.156 10 false *a 6.375,2.75 6.688,2.906 0.313,0.156 10 false *b 6.531,0.917 6.844,1.073 0.313,0.156 10 false *a 2.26,1.438 2.573,1.594 0.313,0.156 10 false a 2.271,2.063 2.583,2.219 0.313,0.156 10 false a 4.656,0.104 5.031,0.427 0.375,0.323 10 false a-a 0.906,1.906 1.219,2.063 0.313,0.156 10 false A 3.823,0.375 4.135,0.531 0.313,0.156 10 false B 4.625,0.635 4.938,0.792 0.313,0.156 10 false C 6.646,1.385 6.958,1.542 0.313,0.156 10 false D

*A	LH Side	*B	RH Side
*a	Edge of Curved Surface	*b	Triangle

Standard Measurement:

Area	Measurement	Area	Measurement
A	4.0 mm (0.157 in.)	B	15.0 mm (0.591 in.)
C	1.6 to 3.6 mm (0.0630 to 0.142 in.)	D	1.0 mm (0.0394 in.)

b.

Remove the release paper and apply the rear door outside stripe.

75978H 4.INSTALL REAR DOOR LOWER OUTSIDE STRIPE

a.

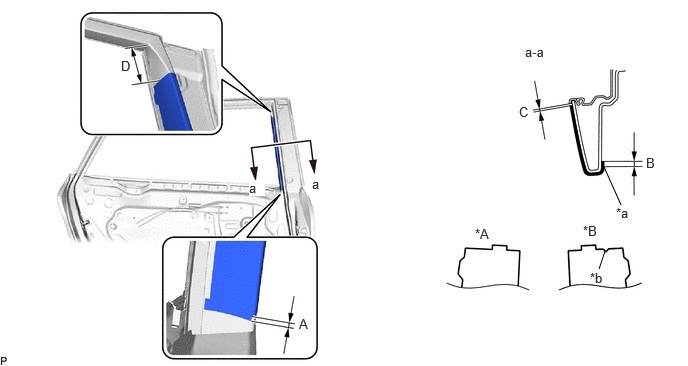

Refer to the illustration to position a new rear door lower outside stripe.

6.469,2.135 6.292,1.74 false 6.24,2.802 6.302,2.615 false 4.948,2.354 5.26,2.51 0.313,0.156 10 false *A 6.073,2.323 6.385,2.479 0.313,0.156 10 false *B 6.417,2.135 6.729,2.292 0.313,0.156 10 false *a 6.146,2.813 6.458,2.969 0.313,0.156 10 false *b 2.594,1.875 2.76,2.042 0.167,0.167 10 true a 3.25,1.833 3.417,2 0.167,0.167 10 true a 5.469,0.458 5.885,0.708 0.417,0.25 10 true a-a 3.115,3.292 3.281,3.458 0.167,0.167 10 true A 1.26,0.604 1.427,0.771 0.167,0.167 10 false D 5.406,1.083 5.698,1.396 0.292,0.313 10 false C 6.729,1.615 6.969,1.896 0.24,0.281 10 false B

*A	LH Side	*B	RH Side
*a	Edge of Curved Surface	*b	Triangle

Standard Measurement:

Area	Measurement	Area	Measurement
A	5.0 mm (0.197 in.)	B	3.0 mm (0.118 in.)
C	1.2 mm (0.0472 in.)	D	32.0 mm (1.26 in.)

b.

Remove the release paper and apply the rear door lower outside stripe.

67872 5.CONNECT REAR DOOR WEATHERSTRIP

68104 6.INSTALL REAR DOOR GLASS SUB-ASSEMBLY

7.INSTALL HOLE PLUG

68124B 8.INSTALL REAR DOOR QUARTER WINDOW GLASS

67408E 9.INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

68152C 10.INSTALL REAR DOOR GLASS RUN

67674A 11.INSTALL REAR DOOR FRAME GARNISH

67842E 12.INSTALL REAR DOOR SERVICE HOLE COVER

68199 13.INSTALL REAR DOOR REAR BELT SEAL

68174A 14.INSTALL REAR DOOR INNER GLASS WEATHERSTRIP

67604 15.INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

74222C 16.INSTALL REAR DOOR ARMREST COVER

69278C 17.INSTALL REAR DOOR INSIDE HANDLE BEZEL

18.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

65351A 19.INSTALL BATTERY HOLE COVER (for HV Model)

58416K 20.INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)

21.PERFORM INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

22.INITIALIZE POWER WINDOW CONTROL SYSTEM

23.INSPECT POWER WINDOW OPERATION
