RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500109 REAR WHEEL HOUSE PLATE A

EXTERIOR PANELS / TRIM  REAR WHEEL HOUSE PLATE  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 65632D 1.REMOVE REAR WHEEL HOUSE FRONT PLATE

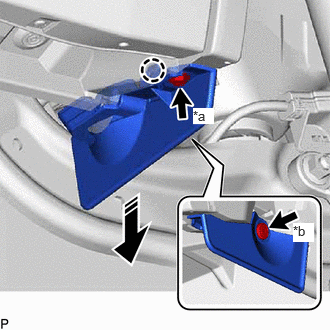

a.
B589325C01
2.01,1.125 2.229,1.292 0.219,0.167 10 true *a 3.052,2.323 3.271,2.521 0.219,0.198 10 true *b
*a Screw
*b Clip
V113147

Remove in this Direction


Remove the screw.


b.

Remove the clip.


c.

Disengage the claw to remove the rear wheel house front plate as shown in the illustration.
