EXTERIOR PANELS / TRIM BACK DOOR OUTSIDE GARNISH REASSEMBLY

Hide Display 76822A 1.INSTALL BACK DOOR GARNISH LOWER MOULDING PROTECTOR

HINT:: When installing the back door garnish lower moulding protector, heat the back door outside garnish using a heat light.

Heating Temperature
Item	Temperature
Back Door Outside Garnish	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door outside garnish excessively.

a.

Clean the back door outside garnish surface.

i.

Using a heat light, heat the back door outside garnish surface.

ii.

Remove any remaining double-sided tape from the back door outside garnish.

iii.

Wipe off any tape adhesive residue with cleaner.

b.

Using a brush or felt, apply primer or equivalent to the back door garnish lower moulding protector installation area.

NOTICE:: ·

Use a clean brush or felt.

·

Do not touch the back door outside garnish until the primer has dried.

0,0 0,0 false

Primer

-

c.

Using a heat light, heat the back door outside garnish.

d.

Remove the release paper from a new back door garnish lower moulding protector.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

e.

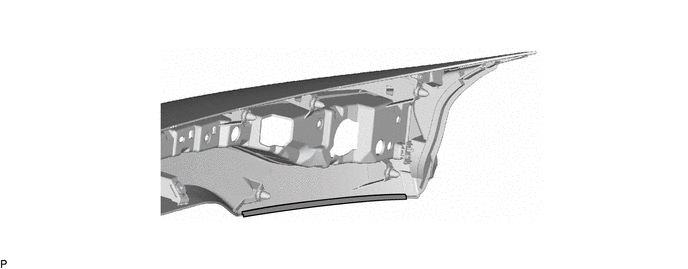

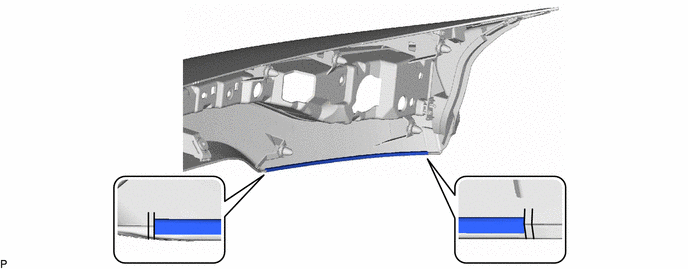

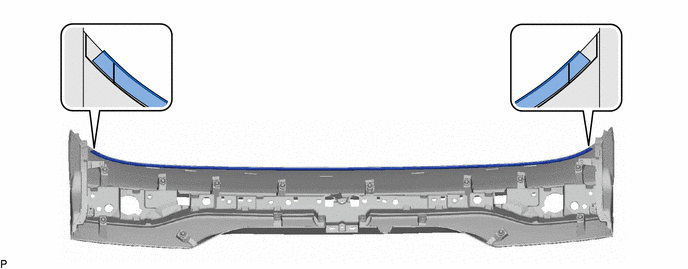

Install the back door garnish lower moulding protector as shown in the illustration.

1.563,2.052 1.594,2.229 true 5.458,2.177 5.5,2.031 true 1.563,2.042 1.542,2.219 true 5.542,2.177 5.5,2.031 true 1.479,1.865 1.667,2.042 0.188,0.177 10 true *a 5.406,1.854 5.594,2.042 0.188,0.188 10 true *a

*a

Line

-

HINT:: ·

Press the back door garnish lower moulding protector firmly to install it.

·

Use the same procedure for the RH side and LH side.

Hide Display 76825 2.INSTALL BACK DOOR OUTSIDE GARNISH PROTECTOR

HINT:: When installing the back door outside garnish protectors, heat the back door outside garnish using a heat light.

Heating Temperature
Item	Temperature
Back Door Outside Garnish	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door outside garnish excessively.

a.

Clean the back door outside garnish surface.

i.

Using a heat light, heat the back door outside garnish surface.

ii.

Remove any remaining double-sided tape from the back door outside garnish.

iii.

Wipe off any tape adhesive residue with cleaner.

b.

for Center with Back Door Outside Garnish Protector:

i.

Using a brush or felt, apply primer or equivalent to the back door outside garnish protectors installation area.

NOTICE:: ·

Use a clean brush or felt.

·

Do not touch the back door outside garnish until the primer has dried.

0,0 0,0 false

Primer

-

c.

Using a brush or felt, apply primer or equivalent to the back door outside garnish protectors installation area.

NOTICE:: ·

Use a clean brush or felt.

·

Do not touch the back door outside garnish until the primer has dried.

0,0 0,0 false

Primer

-

d.

Using a heat light, heat the back door outside garnish.

e.

Remove the release paper from a new back door outside garnish protector.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

f.

for Center with Back Door Outside Garnish Protector:

i.

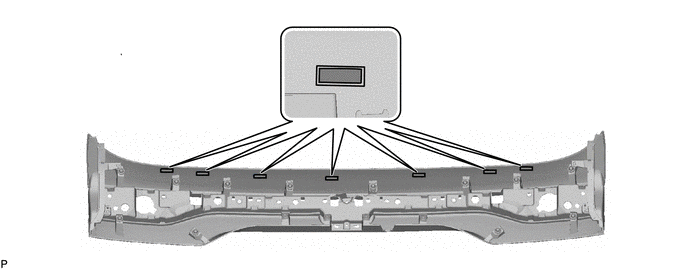

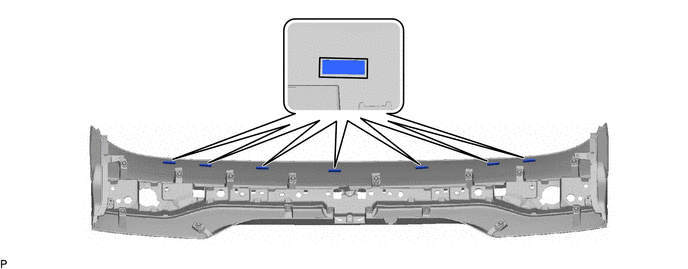

Install the 7 back door outside garnish protectors as shown in the illustration.

3.698,0.948 3.563,0.802 true 3.719,0.906 3.917,1.104 0.198,0.198 10 true *a

*a

Line

-

HINT:: Press the back door outside garnish protectors firmly to install it.

g.

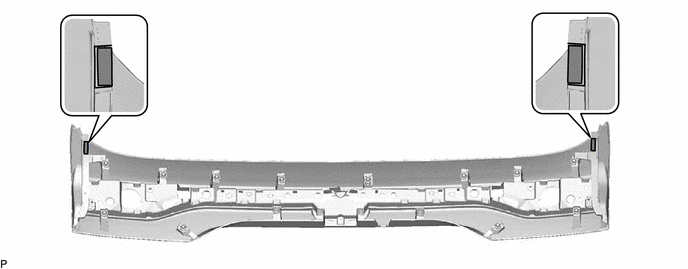

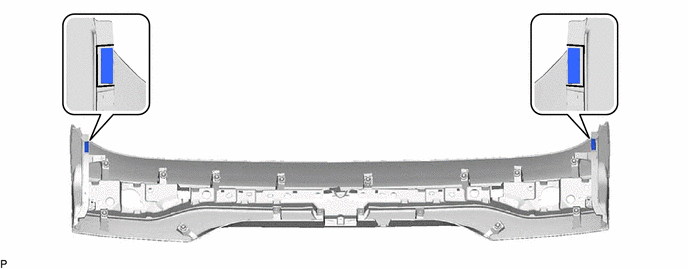

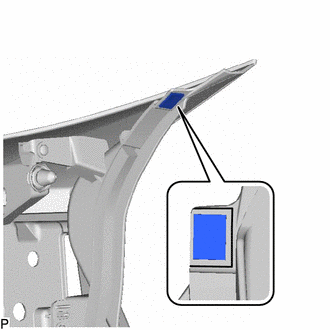

Install the 2 back door outside garnish protectors as shown in the illustration.

1.25,0.979 1.125,0.885 true 6.208,0.844 6.073,0.698 true 6.156,0.865 6.354,1.063 0.198,0.198 10 true *a 1.281,0.917 1.479,1.115 0.198,0.198 10 true *a

*a

Line

-

HINT:: Press the back door outside garnish protectors firmly to install it.

Hide Display 76821 3.INSTALL BACK DOOR GARNISH UPPER MOULDING PROTECTOR

HINT:: When installing the back door garnish upper moulding protector, heat the back door outside garnish using a heat light.

Heating Temperature
Item	Temperature
Back Door Outside Garnish	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door outside garnish excessively.

a.

Clean the back door outside garnish surface.

i.

Using a heat light, heat the back door outside garnish surface.

ii.

Remove any remaining double-sided tape from the back door outside garnish.

iii.

Wipe off any tape adhesive residue with cleaner.

b.

Using a brush or felt, apply primer or equivalent to the back door garnish upper moulding protector installation area.

NOTICE:: ·

Use a clean brush or felt.

·

Do not touch the back door outside garnish until the primer has dried.

0,0 0,0 false

Primer

-

c.

Using a heat light, heat the back door outside garnish.

d.

Remove the release paper from a new back door garnish upper moulding protector.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

e.

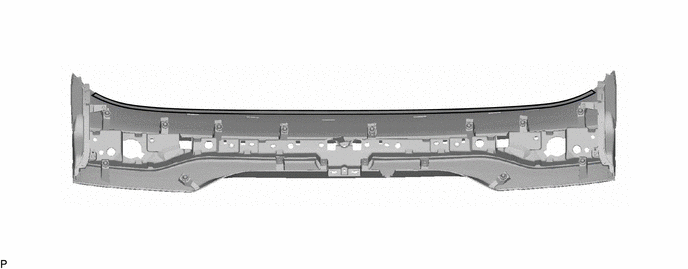

Install the back door garnish upper moulding protector as shown in the illustration.

0.906,0.469 1.427,0.396 true 5.719,0.417 6.219,0.458 true 1.198,0.719 1.417,0.385 true 0.958,0.875 1.01,0.719 true 6.094,0.958 6.063,0.75 true 5.719,0.417 5.917,0.74 true 1.469,0.281 1.781,0.479 0.313,0.198 10 false *a 5.531,0.313 5.844,0.51 0.313,0.198 10 false *a 0.875,0.885 1.188,1.083 0.313,0.198 10 false *a 6.063,0.948 6.375,1.146 0.313,0.198 10 false *a

*a

Line

-

HINT:: Press the back door garnish upper moulding protector firmly to install it.

Hide Display 76823 4.INSTALL BACK DOOR GARNISH MOULDING PROTECTOR RH

HINT:: ·

When installing the back door garnish moulding protector RH, heat the back door garnish using a heat light.

·

Use the same procedure for the RH side and LH side.

Heating Temperature
Item	Temperature
Back Door Outside Garnish	20 to 30°C (68 to 86°F)

CAUTION:

2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b

*a	Heated Part
*b	Heat Light

·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.

NOTICE:: Do not heat the back door outside garnish excessively.

a.

Clean the back door outside garnish surface.

i.

Using a heat light, heat the back door outside garnish surface.

ii.

Remove any remaining double-sided tape from the back door outside garnish.

iii.

Wipe off any tape adhesive residue with cleaner.

b.

0,0 0,0 false

Primer

Using a brush or felt, apply primer or equivalent to the back door garnish moulding protector RH installation area.

NOTICE:: ·

Use a clean brush or felt.

·

Do not touch the back door outside garnish until the primer has dried.

c.

Using a heat light, heat the back door outside garnish.

d.

Remove the release paper from a new back door garnish moulding protector RH.

HINT:: After removing the release paper, keep the exposed adhesive free from foreign matter.

e.

2.375,2.948 2.188,2.771 true 2.385,2.885 2.594,3.104 0.208,0.219 10 true *a

*a

Line

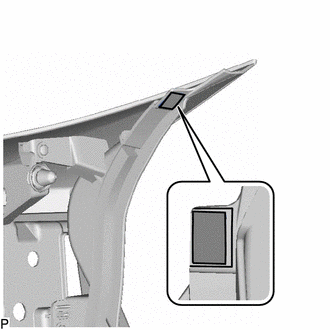

Install the back door garnish moulding protector RH as shown in the illustration.

HINT:: Press the back door garnish moulding protector RH firmly to install it.

Hide Display 5.INSTALL REAR LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR LIGHT ASSEMBLY>INSTALLATION202111,999999,_59,_111834,_0499891,RM100000001Z0LI_01_0085,

Hide Display 6.INSTALL REAR LIGHT ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 82225A 7.INSTALL NO. 2 LIGHT WIRE

Click hereVehicle Exterior>LIGHTING (EXT)>REAR LIGHT ASSEMBLY>INSTALLATION202111,999999,_59,_111834,_0499891,RM100000001Z0LI_01_0084,

Hide Display 75741E 8.INSTALL SYMBOL EMBLEM

a.

0,0 0,0 false

Install in this Direction

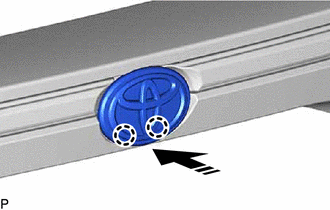

Engage the 2 claws as shown in the illustration.

b.

Install the symbol emblem with the 2 screws.
