RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500108 BACK DOOR OUTSIDE GARNISH A

EXTERIOR PANELS / TRIM  BACK DOOR OUTSIDE GARNISH  DISASSEMBLY


PROCEDURE

Hide 75741E 1.REMOVE SYMBOL EMBLEM

a.
B589318

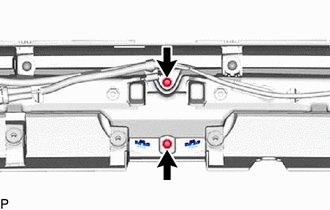

Remove the 2 screws.


b.
B589319C01
0,0 0,0 false
V113147

Remove in this Direction

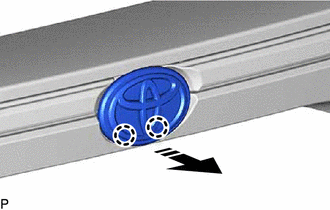

Disengage the 2 claws to remove the symbol emblem as shown in the illustration.


Hide 4.REMOVE REAR LIGHT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.


Hide 76823 5.REMOVE BACK DOOR GARNISH MOULDING PROTECTOR RH

a.
B589320

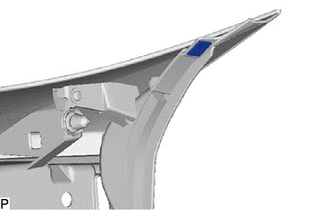

Remove the back door garnish moulding protector RH.

HINT:

Use the same procedure for the RH side and LH side.



Hide 76821 6.REMOVE BACK DOOR GARNISH UPPER MOULDING PROTECTOR

a.

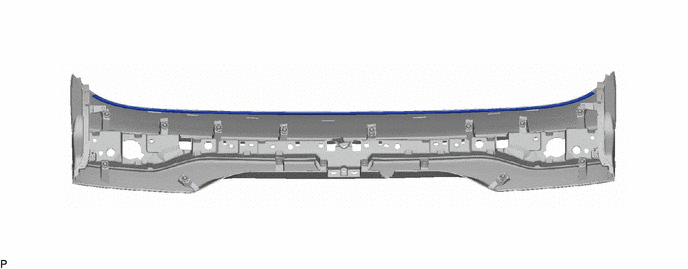

Remove the back door garnish upper moulding protector.

B580190


Hide 76825 7.REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR

a.

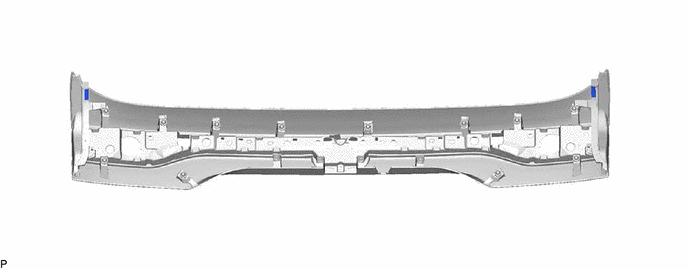

Remove the 2 back door outside garnish protectors.

B614559


b.

for Center with Back Door Outside Garnish Protector:

i.

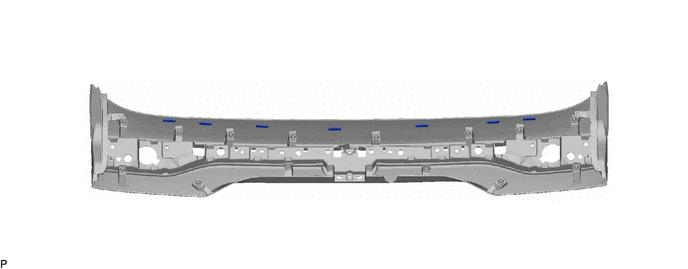

Remove the 7 back door outside garnish protectors.

B616448



Hide 76822A 8.REMOVE BACK DOOR GARNISH LOWER MOULDING PROTECTOR

a.

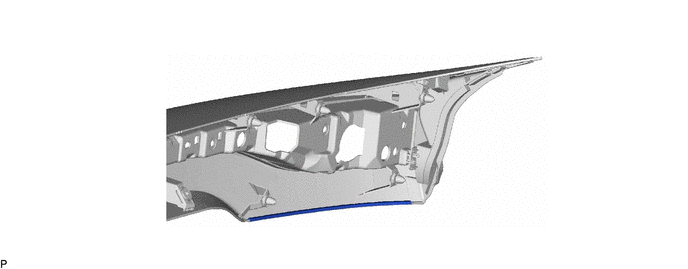

Remove the back door garnish lower moulding protector.

B580192

HINT:

Use the same procedure for the RH side and LH side.
