RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500107 ROOF DRIP SIDE FINISH MOULDING A

EXTERIOR PANELS / TRIM  ROOF DRIP SIDE FINISH MOULDING  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1.INSTALL ROOF DRIP SIDE FINISH MOULDING CLIP

NOTICE:

When installing new roof drip side finish moulding clips, remove any double-sided tape remaining where the roof drip side finish moulding clips will be installed on the vehicle body and clean the vehicle body with a non-residue solvent.


a.

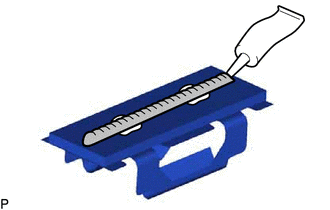

B362651
0.813,0.833 1.281,0.833 1.281,0.833 1.615,1.135 true 2.135,0.313 2.583,0.313 false 1.938,0.219 2.25,0.375 0.313,0.156 10 false *a 0.625,0.75 0.938,0.906 0.313,0.156 10 false *b
*a Adhesive
*b 2 to 3 mm Bead of Adhesive


Apply a 2 to 3 mm (0.0787 to 0.118 in.) bead of adhesive (3M DP-105 or equivalent) to each new roof drip side finish moulding clip.

HINT:

Adhesive strength (tensile strength): 13.7 MPa (140.0 kgf/cm2, 1987 psi) or more (when the temperature is 23°C (73°F).)



b.

for Short Type Panoramic Fixed Moon Roof:

i.

Install the roof drip side finish moulding clips to the positions on the roof panel shown in the illustration. Determine the locations and firmly press and install the roof drip side finish moulding clips.

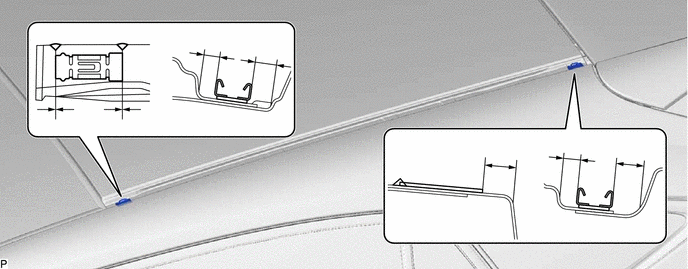

B630593
0.448,1.177 0.604,1.375 0.156,0.198 10 false A 1.313,1.177 1.469,1.375 0.156,0.198 10 false A 2.167,0.344 2.323,0.542 0.156,0.198 10 false B 5.146,1.479 5.302,1.677 0.156,0.198 10 false D 5.927,1.417 6.083,1.615 0.156,0.198 10 false E 2.729,0.438 2.885,0.635 0.156,0.198 10 false C 6.51,1.49 6.667,1.688 0.156,0.198 10 false F

Standard Measurement:
Area Measurement Area Measurement
A 0.0 mm (0.0 in.) B 4.2 to 5.2 mm (0.165 to 0.205 in.)
C 6.9 mm (0.272 in.) D 11.1 mm (0.437 in.)
E 5.0 to 6.0 mm (0.197 to 0.236 in.) F 8.9 mm (0.350 in.)




c.

for Long Type Panoramic Fixed Moon Roof:

i.

Install the roof drip side finish moulding clip to the position on the roof panel shown in the illustration. Determine the locations and firmly press and install the roof drip side finish moulding clips.

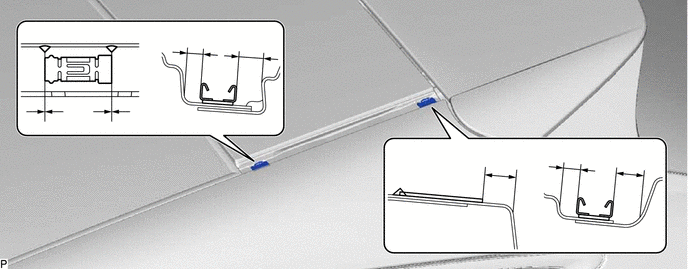

B630594
0.292,1.208 0.448,1.406 0.156,0.198 10 false A 1.208,1.198 1.365,1.396 0.156,0.198 10 false A 1.99,0.323 2.146,0.521 0.156,0.198 10 false B 2.594,0.375 2.75,0.573 0.156,0.198 10 false C 5.156,1.594 5.313,1.792 0.156,0.198 10 false D 5.906,1.521 6.063,1.719 0.156,0.198 10 false E 6.521,1.573 6.677,1.771 0.156,0.198 10 false F

Standard Measurement:
Area Measurement Area Measurement
A 0.0 mm (0.0 in.) B 4.2 to 5.2 mm (0.165 to 0.205 in.)
C 6.9 mm (0.272 in.) D 11.1 mm (0.437 in.)
E 5.0 to 6.0 mm (0.197 to 0.236 in.) F 8.9 mm (0.350 in.)




d.

Install the roof drip side finish moulding when 40 minutes or more have elapsed after pressing and installing the roof drip side finish moulding clips.

HINT:
·

Initial hardening time: 40 minutes

·

Complete hardening time: 24 hours




Hide 75554A 2.INSTALL REAR ROOF DRIP SIDE FINISH MOULDING (for Short Type Panoramic Fixed Moon Roof)

HINT:

When installing the rear roof drip side finish moulding, heat the vehicle body and rear roof drip side finish moulding using a heat light.


Heating Temperature:
Item Temperature
Vehicle Body 40 to 60 °C (104 to 140 °F)
Rear Roof Drip Side Finish Moulding 20 to 30 °C (68 to 86 °F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



a.

Clean the vehicle body surface.

i.

Using a heat light, heat the vehicle body surface.


ii.

Remove any remaining double-sided tape from the vehicle body.


iii.

Wipe off any tape adhesive residue with cleaner.



b.

Remove the release paper from a new rear roof drip side finish moulding.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



c.

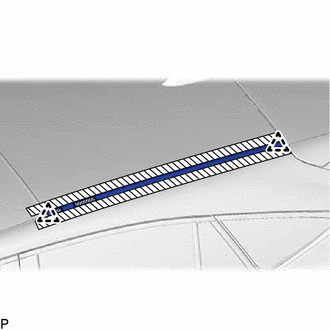

B630595
0.604,2.188 1.656,2.552 1.656,2.552 0.917,2.115 true 1.667,2.458 1.875,2.667 0.208,0.208 10 true *a
*a Double-sided Tape


Engage the 2 clips and install the rear roof drip side finish moulding.


Hide 75554A 3.INSTALL REAR ROOF DRIP SIDE FINISH MOULDING (for Long Type Panoramic Fixed Moon Roof)

HINT:

When installing the rear roof drip side finish moulding, heat the vehicle body and rear roof drip side finish moulding using a heat light.


Heating Temperature:
Item Temperature
Vehicle Body 40 to 60 °C (104 to 140 °F)
Rear Roof Drip Side Finish Moulding 20 to 30 °C (68 to 86 °F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



a.

Clean the vehicle body surface.

i.

Using a heat light, heat the vehicle body surface.


ii.

Remove any remaining double-sided tape from the vehicle body.


iii.

Wipe off any tape adhesive residue with cleaner.



b.

Remove the release paper from a new rear roof drip side finish moulding.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



c.

Engage the 2 clips and install the rear roof drip side finish moulding.

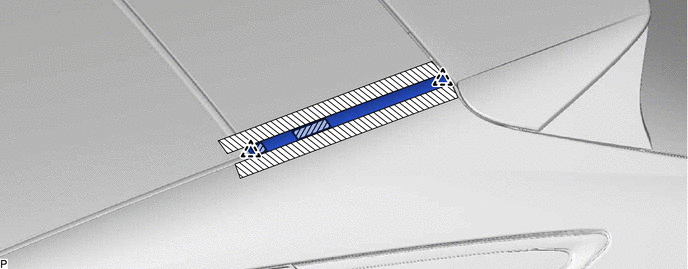

B630596
2.729,1.563 4.073,1.979 4.073,1.979 3.26,1.344 true 4.094,1.885 4.313,2.052 0.219,0.167 10 true *a
*a Double-sided Tape - -
