RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500107 ROOF DRIP SIDE FINISH MOULDING A

EXTERIOR PANELS / TRIM  ROOF DRIP SIDE FINISH MOULDING  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75554A 1.REMOVE REAR ROOF DRIP SIDE FINISH MOULDING (for Short Type Panoramic Fixed Moon Roof)

a.

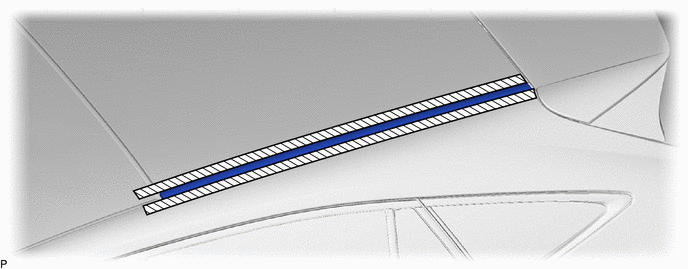

Apply protective tape around the rear roof drip side finish moulding as shown in the illustration.

B630591C01
0,0 0,0 false
V100155

Protective Tape - -



b.

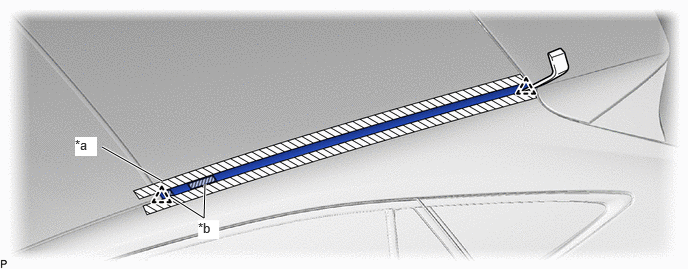

Using a moulding remover, disengage the 2 clips and remove the rear roof drip side finish moulding.

B630592C01
1.688,1.885 1.063,1.531 true 1.781,2.052 2.125,2.271 2.125,2.271 2.135,1.917 true 0.781,1.427 1.01,1.625 0.229,0.198 10 true *a 2.063,2.292 2.281,2.49 0.219,0.198 10 true *b
*a Protective Tape *b Double-sided Tape


NOTICE:
·

Do not remove the roof drip side finish moulding clip.

·

If the roof drip side finish moulding clip is damaged or falls out, replace it with a new one.




Hide 75554A 2.REMOVE REAR ROOF DRIP SIDE FINISH MOULDING (for Long Type Panoramic Fixed Moon Roof)

a.

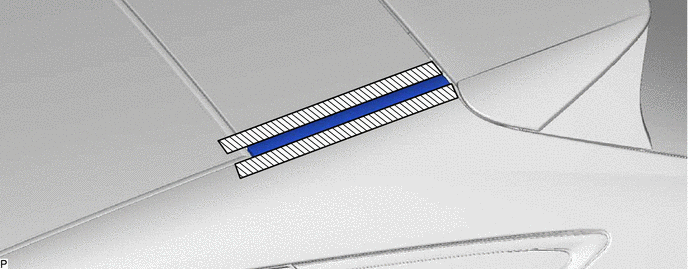

Apply protective tape around the rear roof drip side finish moulding as shown in the illustration.

B630589C01
0,0 0,0 false
V100155

Protective Tape - -



b.

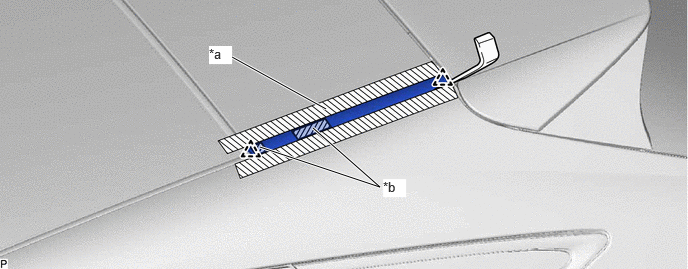

Using a moulding remover, disengage the 2 clips and remove the rear roof drip side finish moulding.

B630590C01
2.708,1.531 3.958,1.948 3.958,1.948 3.26,1.333 true 2.417,0.594 3.396,1.135 true 2.177,0.479 2.417,0.667 0.24,0.188 10 true *a 3.99,1.865 4.229,2.052 0.24,0.188 10 true *b
*a Protective Tape *b Double-sided Tape


NOTICE:
·

Do not remove the roof drip side finish moulding clip.

·

If the roof drip side finish moulding clip is damaged or falls out, replace it with a new one.
