RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500106 REAR DOOR OUTSIDE MOULDING A

EXTERIOR PANELS / TRIM  REAR DOOR OUTSIDE MOULDING  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75078 1.INSTALL REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY

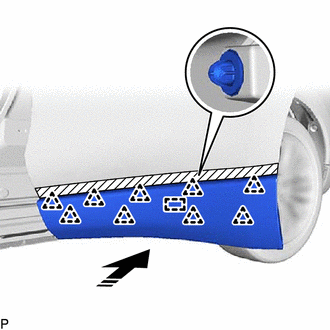

a.
B589311C01
0,0 0,0 false
V113147

Install in this Direction


Engage the guide and 9 clips as shown in the illustration.


b.

Install the rear door lower outside moulding sub-assembly with the nut.

Torque:
5.0 N*m (51 kgf*cm, 44 in.*lbf)


Hide 2.INSTALL HOLE PLUG

a.

Install the hole plug.
