RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500106 REAR DOOR OUTSIDE MOULDING A

EXTERIOR PANELS / TRIM  REAR DOOR OUTSIDE MOULDING  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedures for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

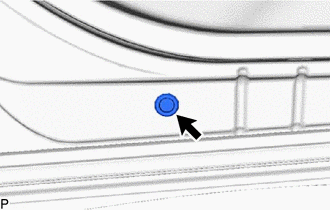

Hide 2.REMOVE HOLE PLUG

a.
B589307

Remove the hole plug.

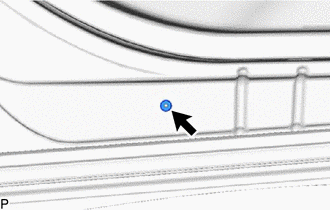

Hide 75078 3.REMOVE REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY

a.
B589309

Remove the nut.

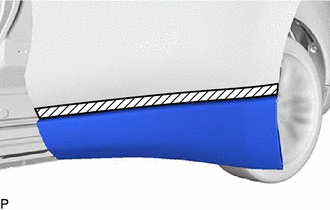

b.
B589308C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear door lower outside moulding sub-assembly as shown in the illustration.

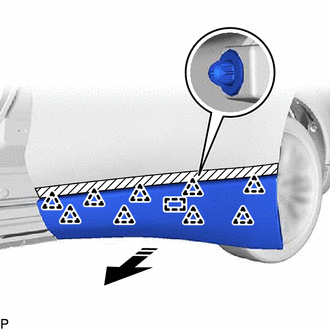

c.
B589310C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 9 clips and guide to remove the rear door lower outside moulding sub-assembly.
