EXTERIOR PANELS / TRIM  REAR DOOR OUTSIDE MOULDING  COMPONENTS

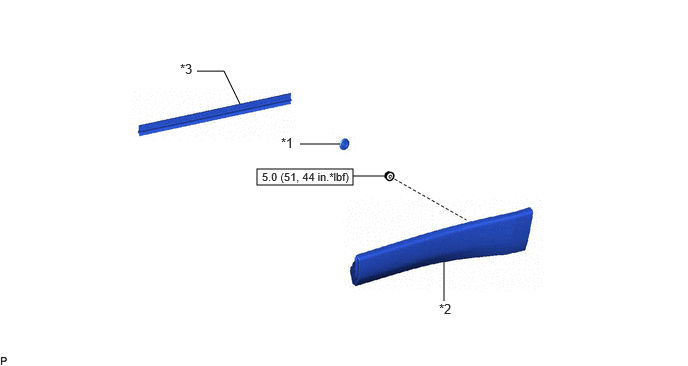

ILLUSTRATION

2.677,1.76 3.677,1.927 1,0.167 3.125,1.5 3.542,1.5 false 4.625,2.719 4.625,3.135 false 4.01,1.833 3.677,1.833 false 2.052,0.74 2.333,0.74 2.333,0.74 2.5,1.083 false 2.927,1.406 3.354,1.656 0.427,0.25 10 false *1 4.573,3.135 4.99,3.417 0.417,0.281 10 false *2 2.729,1.771 3.896,2.094 1.167,0.323 8 false 5.0 (51, 44 in.*lbf) 1.875,0.635 2.344,1.073 0.469,0.438 10 false *3

*1	HOLE PLUG	*2	REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY
*3	REAR DOOR NO. 5 WEATHERSTRIP	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

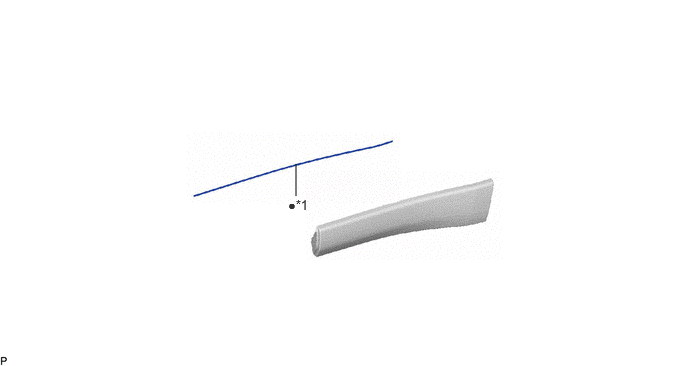

ILLUSTRATION

3.083,2.042 3.083,1.708 false 3,2.052 3.396,2.323 0.396,0.271 10 false ●*1

*1	REAR DOOR UPPER OUTSIDE MOULDING PAD	-	-
●	Non-reusable part	-	-
