EXTERIOR PANELS / TRIM  FRONT DOOR OUTSIDE MOULDING  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75074 1.INSTALL FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY

a.
B589297C01
0,0 0,0 false
V113147

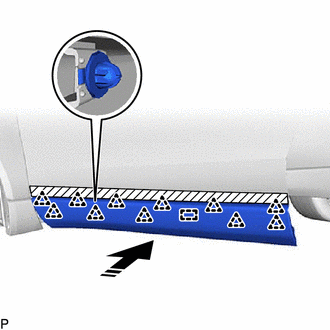

Install in this Direction


Engage the guide and 11 clips as shown in the illustration.


b.

Install the front door lower outside moulding sub-assembly with the nut.

Torque:
5.0 N*m (51 kgf*cm, 44 in.*lbf)


Hide 2.INSTALL HOLE PLUG

a.

Install the hole plug.
