EXTERIOR PANELS / TRIM  FRONT DOOR OUTSIDE MOULDING  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 2.REMOVE HOLE PLUG

a.

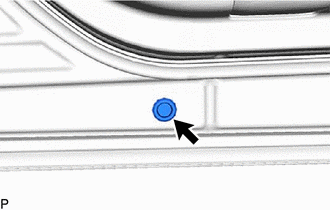

B589293

Remove the hole plug.


Hide 75074 3.REMOVE FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY

a.
B589295

Remove the nut.


b.

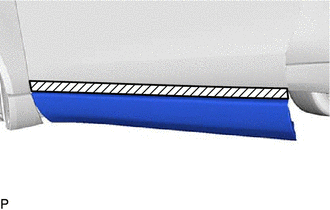

B589294C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the front door lower outside moulding sub-assembly as shown in the illustration.


c.

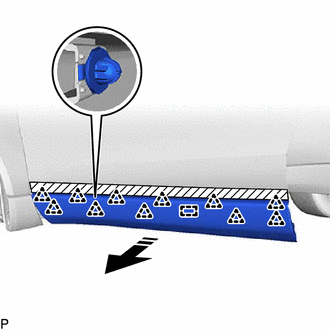

B589296C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 11 clips and guide to remove the front door lower outside moulding sub-assembly as shown in the illustration.
