EXTERIOR PANELS / TRIM  FRONT DOOR OUTSIDE MOULDING  COMPONENTS

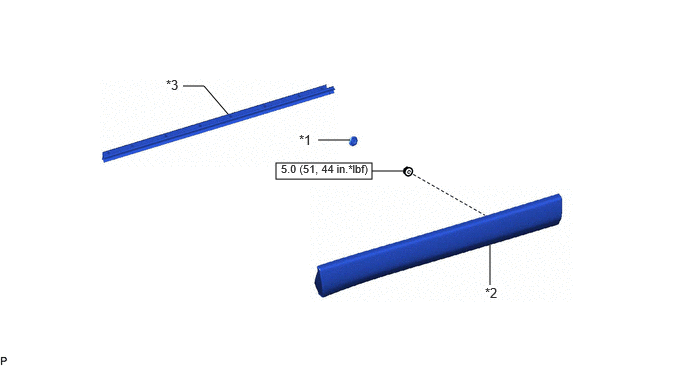

ILLUSTRATION

2.875,1.698 3.875,1.865 1,0.167 5.104,2.969 5.104,2.552 false 3.313,1.458 3.646,1.458 false 3.875,1.781 4.208,1.781 false 1.906,0.896 2.125,0.896 2.125,0.896 2.375,1.188 false 5.052,2.969 5.458,3.292 0.406,0.323 10 false *2 3.115,1.375 3.542,1.635 0.427,0.26 10 false *1 2.927,1.688 4.073,1.854 1.146,0.167 8 false 5.0 (51, 44 in.*lbf) 1.729,0.802 2.094,1.104 0.365,0.302 10 false *3

*1	HOLE PLUG	*2	FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY
*3	FRONT DOOR NO. 2 WEATHERSTRIP	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

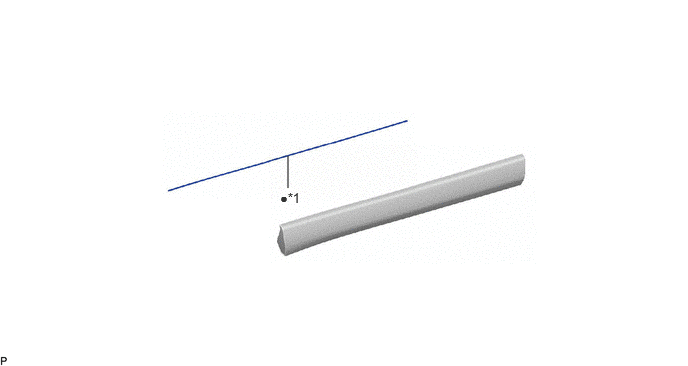

ILLUSTRATION

3,1.958 3,1.625 false 2.917,1.979 3.333,2.313 0.417,0.333 10 false ●*1

*1	FRONT DOOR UPPER OUTSIDE MOULDING PAD	-	-
●	Non-reusable part	-	-
