RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500101 ROCKER PANEL MOULDING A

EXTERIOR PANELS / TRIM  ROCKER PANEL MOULDING  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 76902A 2.REMOVE SIDE MUDGUARD SUB-ASSEMBLY

a.
B589270C01
1.354,1.938 1.573,2.115 0.219,0.177 10 true *a 0.729,0.844 0.969,1.042 0.24,0.198 10 true *b
*a Clip
*b Grommet

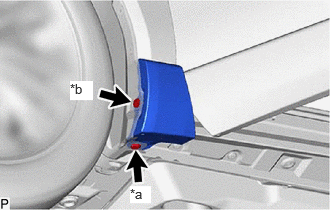

Remove the clip and grommet.


b.
B589271C01
0,0 0,0 false
V100155

Protective Tape

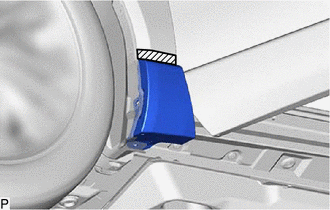

Apply protective tape around the side mudguard sub-assembly as shown in the illustration.


c.
B589272C01
0,0 0,0 false
V113147

Remove in this Direction

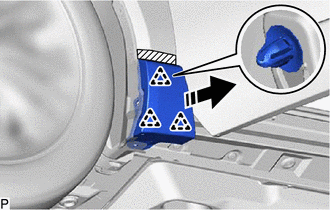

Disengage the 3 clips as shown in the illustration to remove the side mudguard sub-assembly.


Hide 75860A 3.REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY

a.

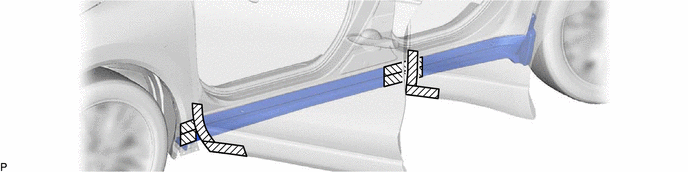

Apply protective tape around the body rocker panel moulding assembly and doors as shown in the illustration.

B589274C01
0,0 0,0 false
V100155

Protective Tape - -



b.

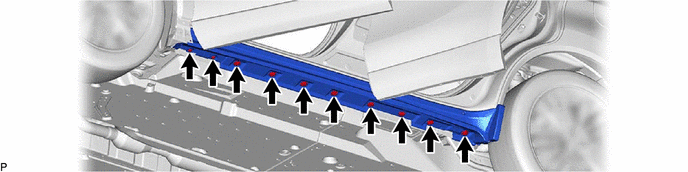

Remove the 10 clips.

B589275


c.

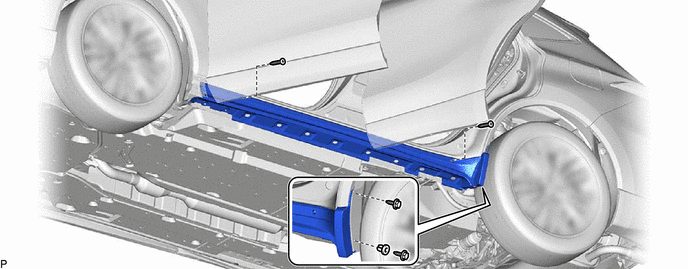

Remove the 4 screws and grommet.

B589276


d.

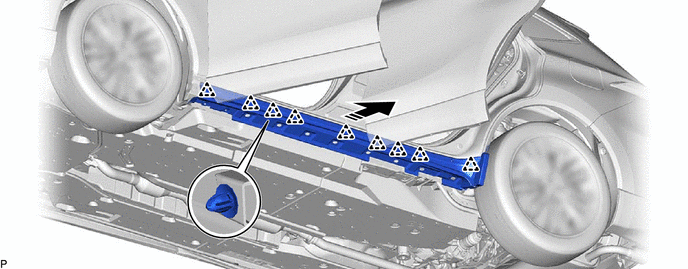

Disengage the 9 clips as shown in the illustration to remove the body rocker panel moulding assembly.

B589277C01
0,0 0,0 false
V113147

Remove in this Direction - -
