EXTERIOR PANELS / TRIM  ROCKER PANEL MOULDING  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75860A 1.INSTALL BODY ROCKER PANEL MOULDING ASSEMBLY

a.

Engage the 9 clips as shown in the illustration.

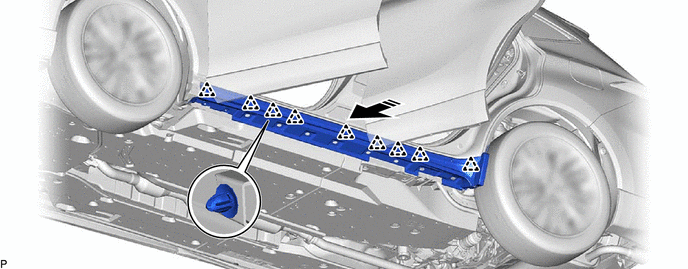

B589278C01
0,0 0,0 false
V113147

Install in this Direction - -



b.

Install a new grommet.


c.

Install the 4 screws.


d.

Install the body rocker panel moulding assembly with the 10 clips.


e.

Remove the protective tape.


Hide 76902A 2.INSTALL SIDE MUDGUARD SUB-ASSEMBLY

a.

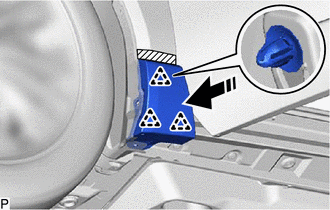

B589273C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 3 clips as shown in the illustration.


b.

Install a new grommet.


c.

Install the side mudguard sub-assembly with the clip.
