RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500099 FRONT DOOR BELT MOULDING A

EXTERIOR PANELS / TRIM FRONT DOOR BELT MOULDING INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 68126 1.INSTALL FRONT DOOR FIX WINDOW GLASS

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0200,

Hide Display 67402F 2.INSTALL FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0204,

Hide Display 68151D 3.INSTALL FRONT DOOR GLASS RUN

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0109,

Hide Display 68102 4.INSTALL FRONT DOOR GLASS SUB-ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0019,

Hide Display 75720 5.INSTALL FRONT DOOR BELT MOULDING ASSEMBLY

0,0 0,0 false

Install in this Direction

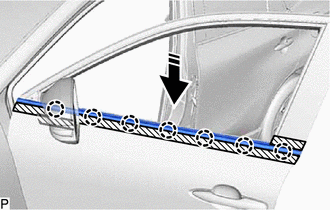

Engage the 7 claws to install a new front door belt moulding assembly as shown in the illustration.

Remove the protective tape.

Hide Display 6.INSTALL HOLE PLUG

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0230,

Hide Display 67832 7.INSTALL FRONT DOOR SERVICE HOLE COVER

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0021,

Hide Display 67831D 8.INSTALL FRONT DOOR SERVICE HOLE COVER CLIP

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0205,

Hide Display 68193C 9.INSTALL FRONT DOOR FRONT BELT SEAL

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0234,

Hide Display 67602 10.INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0161,

Hide Display 67602 11.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0026,

Hide Display 81230 12.INSTALL COURTESY LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>DOOR COURTESY LIGHT>INSTALLATION202111,999999,_58,_111833,_0499876,RM100000001Z0IF_01_0006,

Hide Display 74221A 13.INSTALL FRONT DOOR ARMREST COVER

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0212,

Hide Display 69278B 14.INSTALL FRONT DOOR INSIDE HANDLE BEZEL

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>REASSEMBLY202111,999999,_59,_111831,_0501457,RM100000001Z65Q_01_0030,

Hide Display 15.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for A25F-FXS, A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503322,RM100000001ZE59_01_0015,

for M20D-FKS, M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS, M20D-FKS BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503321,RM100000001ZE56_01_0015,

Hide Display 65351A 16.INSTALL BATTERY HOLE COVER (for HV Model)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION202111,202203,_58,_111843,_0501311,RM100000001Z5HC_02_0245,202203,999999,_58,_111843,_0501311,RM1000000022LYM_02_0245,

Hide Display 58416K 17.INSTALL REAR NO. 2 FLOOR BOARD (for HV Model)

Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>INSTALLATION202111,999999,_V1,_112220,_0503322,RM100000001ZE59_01_0029,

Hide Display 18.PERFORM INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE202111,202203,_V1,_111780,_0504976,RM100000001ZKRT,202203,202406,_V1,_111780,_0504976,RM1000000022CKY,202406,999999,_V1,_111780,_0504976,RM100000002MNUE,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202111,999999,_V1,_111780,_0504976,RM100000001ZKRU,

Hide Display 19.INITIALIZE POWER WINDOW CONTROL SYSTEM

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>INITIALIZATION202111,999999,_59,_111844,_0505692,RM100000001ZOBP,

Hide Display 20.INSPECT POWER WINDOW OPERATION

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>OPERATION CHECK202111,999999,_59,_111844,_0505692,RM100000001ZOBN,
