RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500097 REAR SPOILER A

EXTERIOR PANELS / TRIM REAR SPOILER DISASSEMBLY

PROCEDURE

Hide Display 81570 1.REMOVE CENTER STOP LIGHT ASSEMBLY

for Short Type:

for Long Type:

Hide Display 81935D 2.REMOVE CENTER STOP LIGHT CORD ASSEMBLY

Remove the center stop light cord assembly.

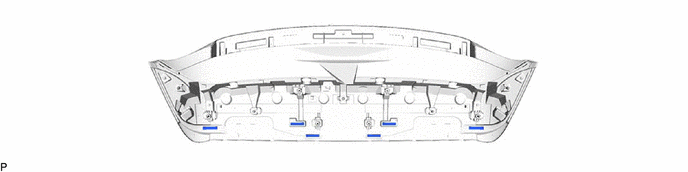

Hide Display 76872 3.REMOVE NO. 1 REAR SPOILER PROTECTOR

Remove the 6 No. 1 rear spoiler protectors.

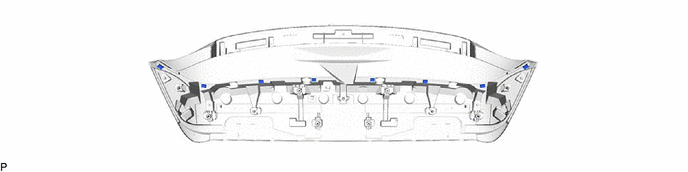

Hide Display 76873 4.REMOVE NO. 2 REAR SPOILER PROTECTOR

Remove the 8 No. 2 rear spoiler protectors.

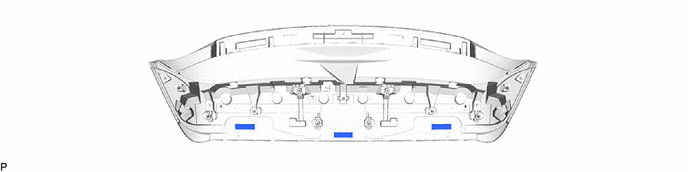

Hide Display 76874 5.REMOVE NO. 3 REAR SPOILER PROTECTOR

Remove the 3 No. 3 rear spoiler protectors.
