RM38N0EC _59 Vehicle Exterior _111849 EXTERIOR PANELS / TRIM _0500095 FRONT BUMPER(for SFTM Made) A

EXTERIOR PANELS / TRIM FRONT BUMPER(for SFTM Made) DISASSEMBLY

PROCEDURE

Hide Display 89341L 1.REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>REMOVAL202111,202203,_56,_111825,_0500524,RM100000001Z2R3_01_0058,202203,202406,_56,_111825,_0500524,RM1000000022L79_01_0058,202406,202409,_56,_111825,_0500524,RM100000002MQNQ_01_0058,202409,999999,_56,_111825,_0500524,RM100000002OMKA_01_0058,

Hide Display 89341K 2.REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>REMOVAL202111,202203,_56,_111825,_0500524,RM100000001Z2R3_01_0059,202203,202406,_56,_111825,_0500524,RM1000000022L79_01_0059,202406,202409,_56,_111825,_0500524,RM100000002MQNQ_01_0059,202409,999999,_56,_111825,_0500524,RM100000002OMKA_01_0059,

Hide Display 89C48D 3.REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front)>REMOVAL202111,202203,_56,_111825,_0500524,RM100000001Z2R3_01_0060,202203,202406,_56,_111825,_0500524,RM1000000022L79_01_0060,202406,202409,_56,_111825,_0500524,RM100000002MQNQ_01_0060,202409,999999,_56,_111825,_0500524,RM100000002OMKA_01_0060,

Hide Display 86790B 4.REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Front)>REMOVAL202111,202203,_56,_111825,_0500526,RM100000001Z2RB_01_0013,202203,202406,_56,_111825,_0500526,RM10000000224HL_01_0013,202406,202409,_56,_111825,_0500526,RM100000002MQO8_01_0013,202409,999999,_56,_111825,_0500526,RM100000002OMJZ_01_0013,

Hide Display 88211B 5.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR>REMOVAL202111,202303,_95,_111850,_0502179,RM100000001Z95I_01_0015,202303,999999,_95,_111850,_0502179,RM10000000292O4_01_0015,

Hide Display 81220 6.REMOVE FOG LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>FOG LIGHT ASSEMBLY>REMOVAL202111,202203,_59,_111834,_0499903,RM100000001Z0N1_01_0025,202203,202406,_59,_111834,_0499903,RM1000000022TFW_01_0025,202406,202409,_59,_111834,_0499903,RM100000002MT6P_01_0025,202409,999999,_59,_111834,_0499903,RM100000002OUJ2_01_0025,

Hide Display 81210A 7.REMOVE FOG LIGHT ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 81482C 8.REMOVE FOG LIGHT COVER LH

Remove the 3 screws and fog light cover LH.

Hide Display 81481E 9.REMOVE FOG LIGHT COVER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 81269B 10.REMOVE FOG LIGHT SEAL

Remove the 2 fog light seals.

Hide Display 82114 11.REMOVE NO. 4 ENGINE ROOM WIRE

Disengage the 19 clamps to remove the No. 4 engine room wire.

Hide Display 53124F 12.REMOVE RADIATOR GRILLE SIDE MOULDING LH

Remove the 2 screws.

Disengage the 4 claws and guide to remove the radiator grille side moulding LH.

Hide Display 53123G 13.REMOVE RADIATOR GRILLE SIDE MOULDING RH

HINT:: Use the same procedure as for the LH side.

Hide Display 53121A 14.REMOVE RADIATOR GRILLE MOULDING

Remove the screw.

Disengage the 6 claws to remove the radiator grille moulding.

Hide Display 52128B 15.REMOVE FRONT BUMPER HOLE COVER LH

Disengage the 4 claws to remove the front bumper hole cover LH.

Hide Display 52127C 16.REMOVE FRONT BUMPER HOLE COVER

HINT:: Use the same procedure as for the LH side.

Hide Display 53122E 17.REMOVE LOWER RADIATOR GRILLE MOULDING

Remove the 5 screws.

Disengage the 16 claws to remove the lower radiator grille moulding.

Hide Display 53395E 18.REMOVE HOOD TO FRONT END PANEL SEAL

Disengage the 2 guides and 16 clips to remove the hood to front end panel seal.

Hide Display 53115B 19.REMOVE RADIATOR GRILLE BRACKET

1.625,1.271 1.833,1.458 0.208,0.188 10 true *a 1.052,1.385 1.26,1.583 0.208,0.198 10 true *b 0.563,1.49 0.771,1.688 0.208,0.198 10 true *b 0.115,1.604 0.323,1.802 0.208,0.198 10 true *b 2.208,1.396 2.417,1.594 0.208,0.198 10 true *b 2.677,1.5 2.885,1.698 0.208,0.198 10 true *b 3.125,1.615 3.333,1.813 0.208,0.198 10 true *b

*a	Screw
*b	Clip

Remove the screw and 6 clips.

Remove the 4 screws.

Disengage the 4 claws and guide to remove the radiator grille bracket.

Hide Display 20.REMOVE RADIATOR GRILLE ASSEMBLY

Remove the 3 screws.

Disengage 10 claws to remove the radiator grille assembly.

Hide Display 75311 21.REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

Remove the screw.

Disengage the 4 claws and guide to remove the radiator grille (or front panel) emblem.

Hide Display 53286C 22.REMOVE FRONT BUMPER ARM HOLE COVER LH

Disengage the 2 claws.

1.531,1.438 1.813,1.615 true 1.823,1.531 2.031,1.729 0.208,0.198 10 true *a

Hook

Disengage the 2 claws and hook to remove the front bumper arm hole cover LH.

Hide Display 53285J 23.REMOVE FRONT BUMPER ARM HOLE COVER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 52414 24.REMOVE FRONT BUMPER GUARD PAD LH

Remove the clip.

Remove the clip.

Disengage the guide to remove the front bumper guard pad LH.

Hide Display 52413A 25.REMOVE FRONT BUMPER GUARD PAD RH

HINT:: Use the same procedure as for the LH side.

Hide Display 52411 26.REMOVE FRONT BUMPER GUARD

Remove the 6 clips.

Remove the 2 screws.

Disengage the 5 claws to remove the front bumper guard.

Hide Display 53102A 27.REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY

Remove the 2 screws.

Disengage the 10 claws to remove the lower radiator grille sub-assembly.

Hide Display 47749F 28.REMOVE PIN HOLD CLIP

0,0 0,0 false

Remove in this Direction

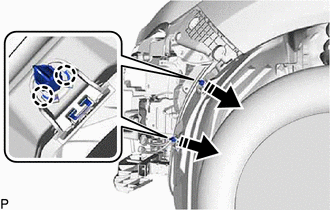

Disengage the 4 claws as shown in the illustration to remove the 2 pin hold clips.

HINT:: Use the same procedure for the RH side and LH side.

Hide Display 53879H 29.REMOVE FRONT FENDER LINER RETAINER

0,0 0,0 false

Remove in this Direction

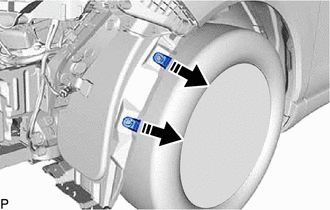

Remove the 2 front fender liner retainers as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

Hide Display 52536 30.REMOVE FRONT BUMPER SIDE RETAINER LH

HINT:: Perform this procedure only when replacement of the front bumper side retainer LH is necessary.

Remove the 2 screws.

0,0 0,0 false

Remove in this Direction

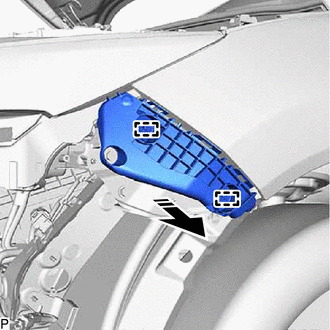

Disengage the 2 guides as shown in the illustration to remove the front bumper side retainer LH.

Hide Display 52535 31.REMOVE FRONT BUMPER SIDE RETAINER RH

HINT:: Use the same procedure as for the LH side.

Hide Display 52614 32.REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER

HINT:: Perform this procedure only when replacement of the No. 2 front bumper energy absorber is necessary.

0,0 0,0 false

Remove in this Direction

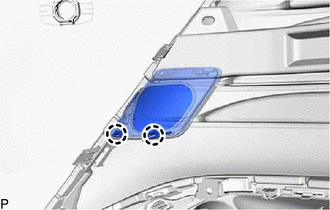

Disengage the 2 guides as shown in the illustration to remove the No. 2 front bumper energy absorber.

Hide Display 52021 33.REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

HINT:: Perform this procedure only when replacement of the front bumper reinforcement sub-assembly is necessary.

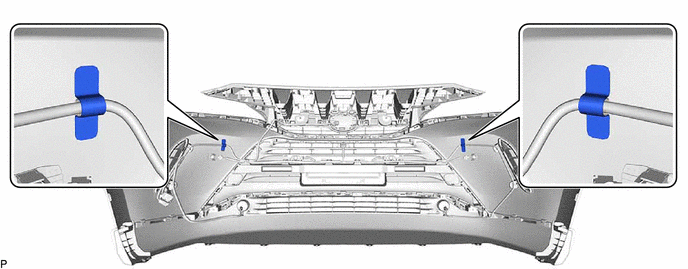

Disengage the 3 clamps.

0,0 0,0 false

Remove in this Direction

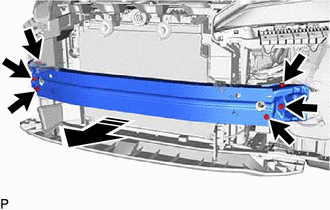

Remove the 6 bolts and front bumper reinforcement sub-assembly as shown in the illustration.

Hide Display 52132A 34.REMOVE NO. 2 FRONT BUMPER REINFORCEMENT (for HV Model)

HINT:: Perform this procedure only when replacement of the No. 2 front bumper reinforcement is necessary.

Remove the 4 nuts and No. 2 front bumper reinforcement.

Hide Display 51441 35.REMOVE NO. 1 ENGINE UNDER COVER

HINT:: Perform this procedure only when replacement of the front bumper lower absorber is necessary.; Click hereEngine / Hybrid System>M20C-FKS, M20D-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202111,202203,_51,_111786,_0499722,RM100000001YZIH_01_0003,202203,202303,_51,_111786,_0499722,RM1000000022F78_01_0003,202303,202406,_51,_111786,_0499722,RM100000002A0JY_01_0003,202406,202409,_51,_111786,_0499722,RM100000002MXOE_01_0003,202409,999999,_51,_111786,_0499722,RM100000002OLFC_01_0003,

Hide Display 52618 36.REMOVE FRONT BUMPER LOWER ABSORBER

HINT:: Perform this procedure only when replacement of the front bumper lower absorber is necessary.

for Gasoline Model:

Remove the 5 screws.

ii.

0,0 0,0 false

Remove in this Direction

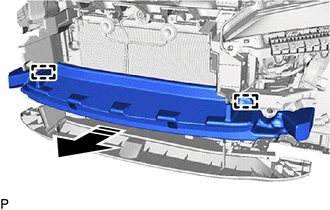

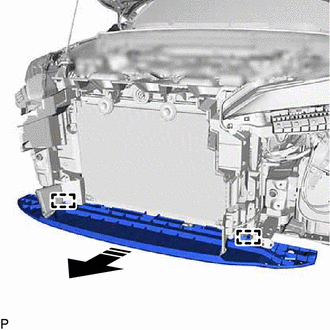

Disengage the 2 guides as shown in the illustration to remove the front bumper lower absorber.

for HV Model:

Remove the clip.

ii.

0,0 0,0 false

Remove in this Direction

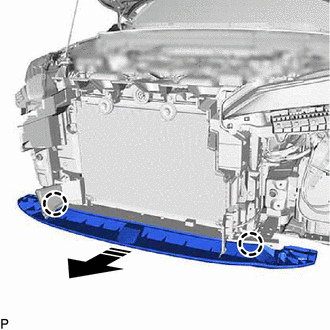

Disengage the 2 claws as shown in the illustration to remove the front bumper lower absorber.

Hide Display 52103A 37.REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

HINT:: Perform this procedure only when replacement of the front bumper extension sub-assembly LH is necessary.

2.646,0.583 2.885,0.771 0.24,0.188 10 true *b 1.167,1.167 1.396,1.354 0.229,0.188 10 true *a 2.406,1.958 2.646,2.146 0.24,0.188 10 true *b 1.75,1.615 1.979,1.802 0.229,0.188 10 true *a

*a	Nut
*b	Bolt

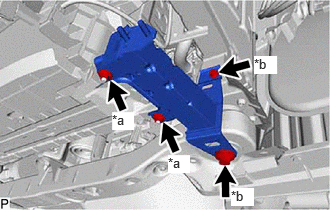

Remove the 2 nuts.

Remove the 2 bolts and front bumper extension sub-assembly LH.

Hide Display 52102B 38.REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.
