RM38N0EC _59 Vehicle Exterior _111837 MIRROR (EXT) _0500086 OUTER MIRROR SWITCH A

MIRROR (EXT) OUTER MIRROR SWITCH INSTALLATION

PROCEDURE

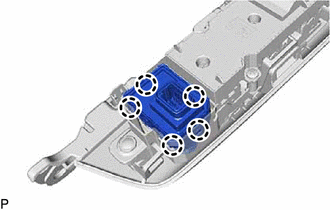

Hide Display 84870A 1.INSTALL OUTER MIRROR SWITCH ASSEMBLY

Engage the 5 claws to install the outer mirror switch assembly.

Hide Display 2.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Hide Display 67602 3.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

Hide Display 74222A 4.INSTALL FRONT DOOR ARMREST COVER LH

Hide Display 69278B 5.INSTALL FRONT DOOR INSIDE HANDLE BEZEL LH
