MIRROR (EXT)  OUTER REAR VIEW MIRROR COVER  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 87945 1.INSTALL OUTER MIRROR COVER

a.

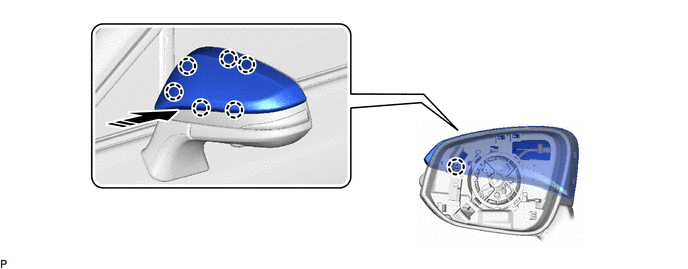

Engage the 7 claws to install the outer mirror cover as shown in the illustration.

B627684C01
0,0 0,0 false
V113147

Install in this Direction - -
