Vehicle Exterior
_111837
MIRROR (EXT)
_0500085
OUTER REAR VIEW MIRROR COVER
A
MIRROR (EXT) OUTER REAR VIEW MIRROR COVER REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
87961
1.REMOVE OUTER MIRROR
87945
2.REMOVE OUTER MIRROR COVER
a.

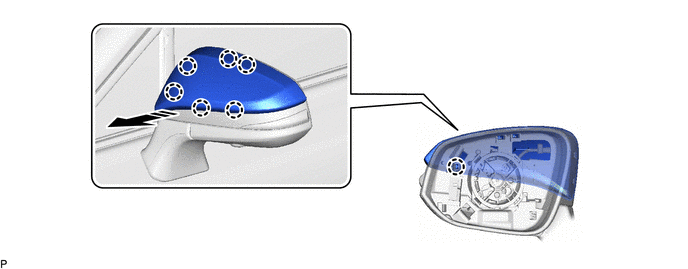

Disengage the 7 claws to remove the outer mirror cover as shown in the illustration.
0,0 0,0
false
|
Remove in this Direction | - | - |
- HINT:
-
If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.
