RM38N0EC _59 Vehicle Exterior _111837 MIRROR (EXT) _0500084 OUTER REAR VIEW MIRROR GLASS A

MIRROR (EXT)  OUTER REAR VIEW MIRROR GLASS  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 87961 1.INSTALL OUTER MIRROR

a.

Connect the 2 connectors.


b.

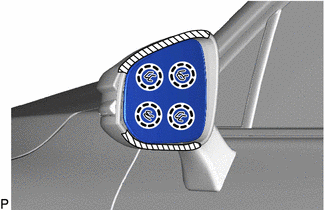

B627681

Engage the 4 claws to install the outer mirror.

NOTICE:

Do not push the outer mirror with excessive force. Doing so may break the mirror surface.



c.

Remove the protective tape.
