RM38N0EC _59 Vehicle Exterior _111837 MIRROR (EXT) _0500084 OUTER REAR VIEW MIRROR GLASS G

MIRROR (EXT) OUTER REAR VIEW MIRROR GLASS INSPECTION

PROCEDURE

Hide Display 87961 1.INSPECT OUTER MIRROR LH

Check the outer mirror heater operation.

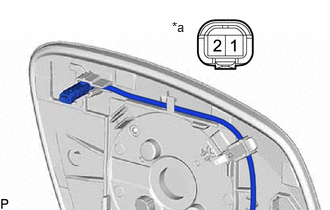

0.458,0.844 1.156,0.844 true 0.469,1.073 1.167,1.073 true 0.344,0.969 0.5,1.198 0.156,0.229 10 false 2 0.333,0.729 0.49,0.958 0.156,0.229 10 false 1 0.125,0.125 0.406,0.323 0.281,0.198 10 false *a

*a	Component without harness connected (Outer Mirror LH)

Measure the resistance according the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	25°C (77°F)	12 to 18 Ω

If the result is not as specified, replace the outer mirror LH.

Check the operation of the outer rear view mirror indicator.

NOTICE:: Do not apply a voltage of more than 6 V.

Connect 4 new 1.5 V dry-cell batteries in series.

ii.

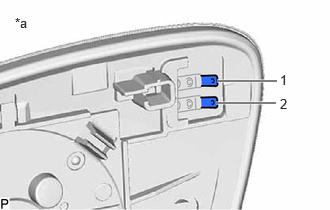

1.792,0.198 2.104,0.396 0.313,0.198 10 false *a

*a	Component without harness connected (Outer Mirror LH)

Apply 6 V battery voltage to the terminals of the connector, and check that the outer rear view mirror indicator comes on.

OK:

Tester Connection	Specified Condition
6 V battery positive (+) → Terminal 2 6 V battery negative (-) → Terminal 1	Outer rear view mirror indicator comes on

If the result is not as specified, replace the outer mirror LH.

Hide Display 87931 2.INSPECT OUTER MIRROR RH

Check the outer mirror heater operation.

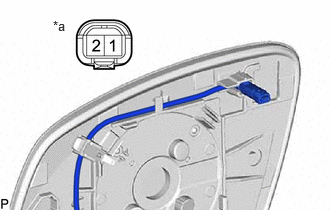

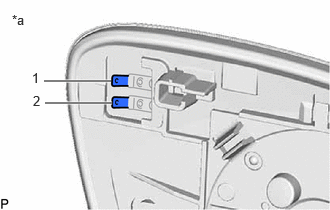

2.25,1.073 2.875,1.073 true 2.26,0.844 2.885,0.844 true 0.156,0.156 0.469,0.354 0.313,0.198 10 false *a 2.917,0.75 3.229,0.948 0.313,0.198 10 false 1 2.917,1 3.229,1.198 0.313,0.198 10 false 2

*a	Component without harness connected (Outer Mirror RH)

Measure the resistance according to the value(s) in the table below.
