MIRROR (EXT)
_0500083
OUTER REAR VIEW MIRROR
A
MIRROR (EXT) OUTER REAR VIEW MIRROR REASSEMBLY
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81740
1.INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY
86790F
2.INSTALL SIDE TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
3.INSTALL NO. 2 OUTER MIRROR COVER
a.
w/ Foot Light:
i.

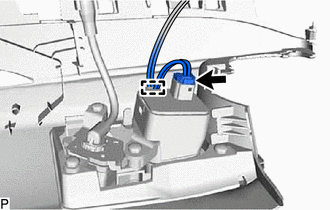

Connect the connector.
ii.

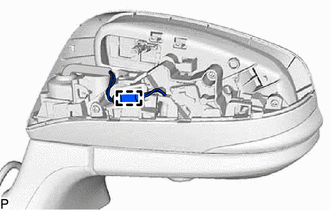

Engage the clamp.
b.
0,0 0,0
false
|
Install in this Direction |

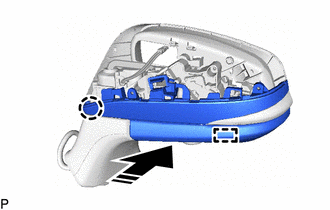

Engage the guide and claw as shown in the illustration.
c.

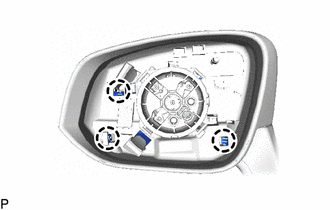

Engage the 3 claws.
d.

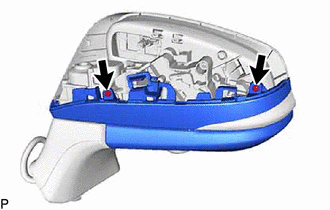

Install the No. 2 outer mirror cover with the 2 screws.
e.
w/ Panoramic View Monitor System:
i.

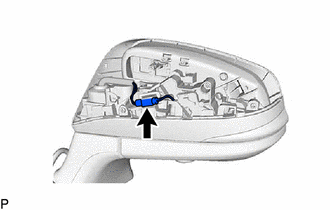

Connect the connector.
ii.
Engage the clamp.
87945
4.INSTALL OUTER MIRROR COVER
87961
5.INSTALL OUTER MIRROR
