MIRROR (INT) INNER MIRROR MONITOR CAMERA REMOVAL

PROCEDURE

Hide Display 67939B 1.REMOVE BACK DOOR CENTER GARNISH

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR>DISASSEMBLY202111,202203,_59,_111831,_0501461,RM100000001Z664_01_0224,202203,202406,_59,_111831,_0501461,RM1000000022E7D_01_0224,202406,202409,_59,_111831,_0501461,RM100000002MT8U_01_0224,202409,999999,_59,_111831,_0501461,RM100000002OO33_01_0224,

Hide Display 867C0B 2.REMOVE REAR INNER MIRROR CAMERA ASSEMBLY

a.

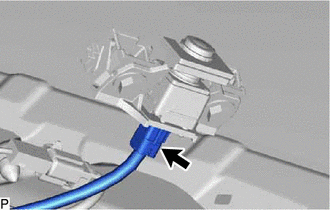

B588679

Disconnect the connector.

b.

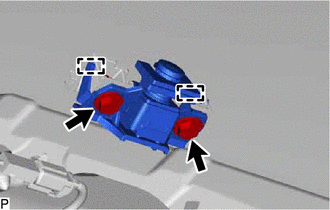

B588680

Remove the 2 screws.

c.

Disengage the 2 guides to remove the rear inner mirror camera assembly.
