MIRROR (INT)  DIGITAL INNER MIRROR  INSTALLATION


PROCEDURE

Hide 87810 1.INSTALL INNER REAR VIEW MIRROR ASSEMBLY

a.
B592666C01
0,0 0,0 false
V113147

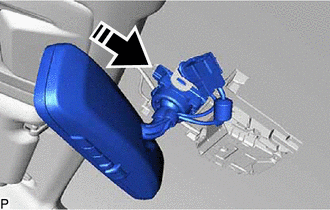

Install in this Direction


Slide and temporarily install the inner rear view mirror assembly as shown in the illustration.


b.

Using a T20 "TORX" socket wrench, install the inner rear view mirror assembly with the screw.

Torque:
1.8 N*m (18 kgf*cm, 16 in.*lbf)


c.

Engage the clamp.


d.

Connect the 2 connectors.
