RM38N0EC _58 Vehicle Interior _111836 MIRROR (INT) _0499907 DIGITAL INNER MIRROR A

MIRROR (INT) DIGITAL INNER MIRROR REMOVAL

PROCEDURE

Hide Display 86466E 1.REMOVE NO. 2 FORWARD RECOGNITION COVER

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>REMOVAL202111,202303,_95,_111850,_0502177,RM100000001Z959_01_0022,202303,999999,_95,_111850,_0502177,RM10000000292O2_01_0022,

Hide Display 86466D 2.REMOVE NO. 1 FORWARD RECOGNITION COVER

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA>REMOVAL202111,202303,_95,_111850,_0502177,RM100000001Z959_01_0023,202303,999999,_95,_111850,_0502177,RM10000000292O2_01_0023,

Hide Display 87810 3.REMOVE INNER REAR VIEW MIRROR ASSEMBLY

a.

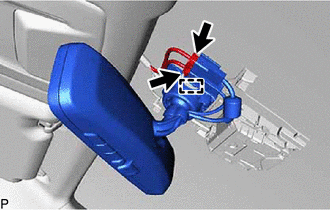

B592663

Disconnect the 2 connectors.

b.

Disengage the clamp.

c.

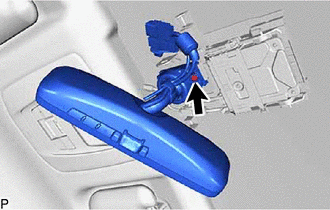

B592664

Using a T20 "TORX" socket wrench, remove the screw.

d.

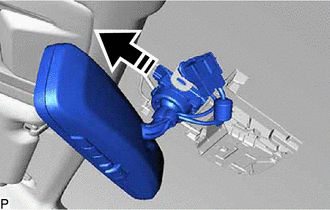

B592665C01

0,0 0,0 false

V113147

Remove in this Direction

Slide the inner rear view mirror assembly as shown in the illustration to remove it.
