RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0499904 HIGH MOUNTED STOP LIGHT ASSEMBLY A

LIGHTING (EXT)  HIGH MOUNTED STOP LIGHT ASSEMBLY  INSTALLATION


PROCEDURE

Hide 81570 1.INSTALL CENTER STOP LIGHT ASSEMBLY (for Short Type)

a.

Connect the connector.


b.
E475198C01
0,0 0,0 false
V113147

Install in this Direction

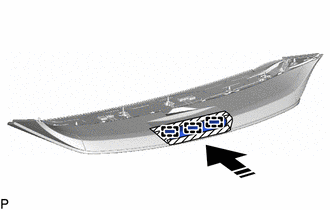

Engage the 3 guides to temporarily install the center stop light assembly as shown in the illustration.


c.

Install the center stop light assembly with the 2 screws.


d.

Remove the protective tape.


Hide 81570 2.INSTALL CENTER STOP LIGHT ASSEMBLY (for Long Type)

a.

Connect the connector.


b.

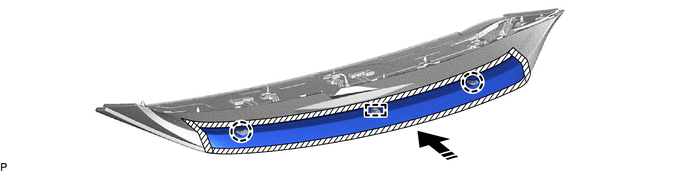

Engage the 2 claws and guide to temporarily install the center stop light assembly as shown in the illustration.

E447475C01
0,0 0,0 false
V113147

Install in this Direction - -



c.

Install the center stop light assembly with the 4 screws.


d.

Remove the protective tape.
