RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0499901 AUTOMATIC LIGHT CONTROL SENSOR A

LIGHTING (EXT) AUTOMATIC LIGHT CONTROL SENSOR REMOVAL

PROCEDURE

Hide Display 55422C 1.REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL202111,202203,_58,_111843,_0501135,RM100000001Z52W_01_0115,202203,202303,_58,_111843,_0501135,RM10000000226IL_01_0115,202303,202406,_58,_111843,_0501135,RM100000002AL9I_01_0115,202406,999999,_58,_111843,_0501135,RM100000002MQF5_01_0115,

Hide Display 89120A 2.REMOVE AUTOMATIC LIGHT CONTROL SENSOR

a.

E447498C01

0,0 0,0 false

V113147

Remove in this Direction

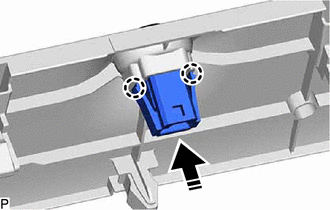

Disengage the 2 claws to remove the automatic light control sensor as shown in the illustration.
