LIGHTING (EXT) AUTOMATIC LIGHT CONTROL SENSOR INSTALLATION

PROCEDURE

Hide Display 89120A 1.INSTALL AUTOMATIC LIGHT CONTROL SENSOR

a.

E447499C01

0,0 0,0 false

V113147

Install in this Direction

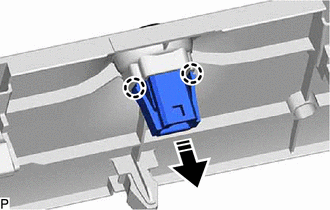

Engage the 2 claws to install the automatic light control sensor as shown in the illustration.

Hide Display 55422C 2.INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION202111,202203,_58,_111843,_0501135,RM100000001Z52Z_01_0128,202203,202303,_58,_111843,_0501135,RM10000000226IU_01_0128,202303,999999,_58,_111843,_0501135,RM100000002BEWI_01_0128,
