RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0499899 HAZARD WARNING SWITCH A

LIGHTING (EXT) HAZARD WARNING SWITCH INSTALLATION

PROCEDURE

Hide Display 84330 1.INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY

0,0 0,0 false

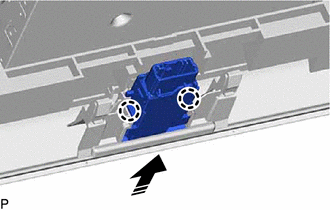

Install in this Direction

Engage the 2 claws to install the hazard warning signal switch assembly as shown in the illustration.

Hide Display 2.INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)

Hide Display 3.INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (for 12.3 Inch Display)

Hide Display 55422C 4.INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
