Vehicle Exterior
_111834
LIGHTING (EXT)
_0499897
HEADLIGHT DIMMER SWITCH
A
LIGHTING (EXT) HEADLIGHT DIMMER SWITCH REMOVAL
PROCEDURE
45287
1.REMOVE LOWER STEERING COLUMN COVER
45286B
2.REMOVE UPPER STEERING COLUMN COVER
84329
3.REMOVE TURN SIGNAL SWITCH
a.

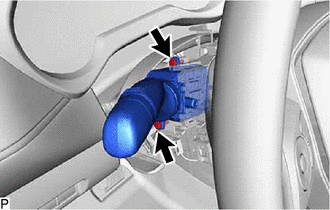

Remove the 2 screws.
b.
2.635,1.219 2.302,0.719
true
2.573,1.271 2.885,1.427
0.313,0.156
10
true
*a
| *a | Protective Tape |
|
Remove in this Direction |

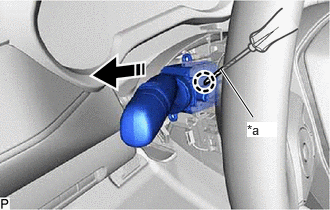

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the turn signal switch as shown in the illustration.
- NOTICE:
-
If the claw is pulled with excessive force, it may break.
