LIGHTING (EXT)  LICENSE PLATE LIGHT ASSEMBLY  INSPECTION

0.979,1.75 1.229,1.25 true 1.719,1.74 1.469,1.24 true 0.167,0.177 0.479,0.333 0.313,0.156 10 false *a 0.948,1.802 1.104,2 0.156,0.198 10 false E 1.729,1.781 2.188,1.979 0.458,0.198 10 false B

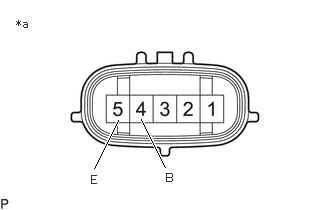

*a	Component without harness connected (License Plate Light Assembly With Back Door Opener Switch)

Apply auxiliary battery voltage to the license plate light assembly with back door opener switch and check that the light comes on.

OK:

Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 4 (B) Auxiliary battery negative (-) → Terminal 5 (E)	License plate light comes on

If the result is not as specified, replace the license plate light assembly with back door opener switch.
