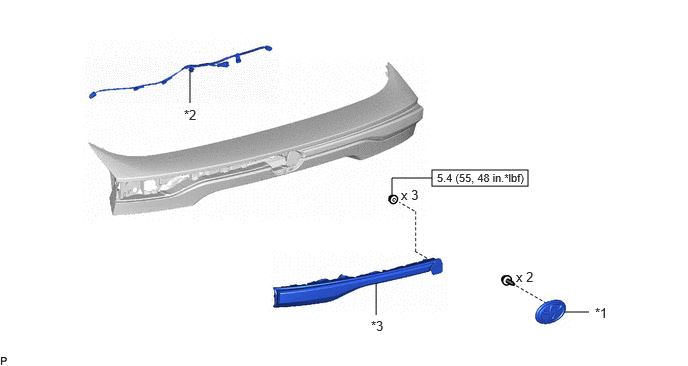

LIGHTING (EXT)  REAR LIGHT ASSEMBLY  COMPONENTS

ILLUSTRATION

4.5,1.771 5.5,1.938 1,0.167 1.979,1.073 1.979,0.74 false 3.917,3.281 3.917,2.948 false 5.885,3.25 6.135,3.25 false 4.083,2.021 4.083,1.854 4.083,1.854 4.5,1.854 false 6.198,3.177 6.51,3.333 0.313,0.156 10 false *1 1.917,1.115 2.229,1.271 0.313,0.156 10 false *2 3.865,3.313 4.177,3.469 0.313,0.156 10 false *3 5.375,2.802 5.833,3 0.458,0.198 10 false x 2 4.177,1.948 4.635,2.146 0.458,0.198 10 false x 3 4.552,1.781 7,1.938 2.448,0.156 8 false 5.4 (55, 48 in.*lbf)

*1	SYMBOL EMBLEM	*2	NO. 2 LIGHT WIRE
*3	REAR LIGHT ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
