LIGHTING (EXT)  REAR LIGHT ASSEMBLY  INSPECTION

1.083,1.333 1.583,0.969 true 2.271,1.25 1.854,0.969 true 0.104,0.083 0.417,0.281 0.313,0.198 10 false *a 2.292,1.271 2.448,1.469 0.156,0.198 10 false E 1,1.344 1.156,1.542 0.156,0.198 10 false B

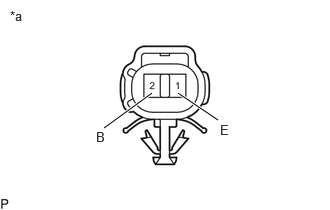

*a	Component without harness connected (Rear Light Assembly LH)

Apply auxiliary battery voltage to the rear light assembly LH and check that the lights illuminate.

OK:

Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 2 (B) Auxiliary battery negative (-) → Terminal 1 (E)	Taillight illuminates

If the result is not as specified, replace the rear light assembly LH.

1.083,1.333 1.583,0.969 true 2.271,1.25 1.854,0.969 true 0.104,0.083 0.417,0.281 0.313,0.198 10 false *a 2.292,1.271 2.448,1.469 0.156,0.198 10 false E 1,1.344 1.156,1.542 0.156,0.198 10 false B

*a	Component without harness connected (Rear Light Assembly RH)

Apply auxiliary battery voltage to the rear light assembly RH and check that the lights illuminate.

OK:

Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 2 (B) Auxiliary battery negative (-) → Terminal 1 (E)	Taillight illuminates

If the result is not as specified, replace the rear light assembly RH.
