RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0499888 HEADLIGHT ASSEMBLY G

LIGHTING (EXT)  HEADLIGHT ASSEMBLY  INSPECTION


PROCEDURE

Hide 81150 1.INSPECT HEADLIGHT ASSEMBLY LH (w/o Projector Headlight)

a.

Illumination Inspection

1.

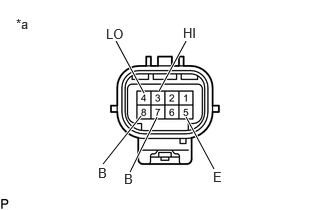

E402294C03
1.656,0.948 1.938,0.427 true 2.229,1.76 1.938,1.219 true 1.354,1.792 1.635,1.219 true 1.5,0.969 1.208,0.427 true 1.073,1.708 1.469,1.208 true 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 1.906,0.26 2.115,0.458 0.208,0.198 10 false HI 2.219,1.76 2.375,1.958 0.156,0.198 10 false E 1.292,1.781 1.448,1.979 0.156,0.198 10 false B 1.104,0.271 1.333,0.448 0.229,0.177 10 false LO 1.021,1.719 1.177,1.917 0.156,0.198 10 false B
*a Component without harness connected
(Headlight Assembly LH)


Apply auxiliary battery voltage to the headlight assembly LH and check that the lights illuminate.

OK:
Clearance light
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 7 (B)
Auxiliary battery negative (-) → Terminal 5 (E) 		Clearance light illuminates


OK:
Lo beam headlight
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (LO)
Auxiliary battery negative (-) → Terminal 5 (E) 		Lo beam headlight illuminates


OK:
Hi beam headlight
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (LO) and 3 (HI)
Auxiliary battery negative (-) → Terminal 5 (E) 		Hi beam headlight illuminates


OK:
Turn signal light
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 8 (B)
Auxiliary battery negative (-) → Terminal 5 (E) 		Turn signal light illuminates



If the result is not as specified, replace the headlight assembly LH.


Hide 81110 2.INSPECT HEADLIGHT ASSEMBLY RH (w/o Projector Headlight)

a.

Illumination Inspection

1.
E402294C03
1.656,0.948 1.938,0.427 true 2.229,1.76 1.938,1.219 true 1.354,1.792 1.635,1.219 true 1.5,0.969 1.208,0.427 true 1.073,1.708 1.469,1.208 true 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 1.906,0.26 2.115,0.458 0.208,0.198 10 false HI 2.219,1.76 2.375,1.958 0.156,0.198 10 false E 1.292,1.781 1.448,1.979 0.156,0.198 10 false B 1.104,0.271 1.333,0.448 0.229,0.177 10 false LO 1.021,1.719 1.177,1.917 0.156,0.198 10 false B
*a Component without harness connected
(Headlight Assembly RH)


Apply auxiliary battery voltage to the headlight assembly RH and check that the lights illuminate.

OK:
Clearance light
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 7 (B)
Auxiliary battery negative (-) → Terminal 5 (E) 		Clearance light illuminates


OK:
Lo beam headlight
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (LO)
Auxiliary battery negative (-) → Terminal 5 (E) 		Lo beam headlight illuminates


OK:
Hi beam headlight
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (LO) and 3 (HI)
Auxiliary battery negative (-) → Terminal 5 (E) 		Hi beam headlight illuminates


OK:
Turn signal light
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 8 (B)
Auxiliary battery negative (-) → Terminal 5 (E) 		Turn signal light illuminates



If the result is not as specified, replace the headlight assembly RH.


Hide 81150 3.INSPECT HEADLIGHT ASSEMBLY LH (w/ Projector Headlight)

a.

Illumination Inspection

1.

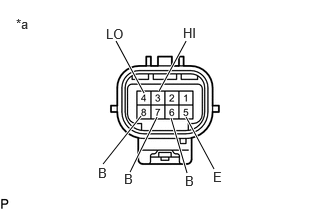

E402294C04
1.656,0.948 1.938,0.427 true 2.229,1.76 1.938,1.219 true 1.354,1.792 1.635,1.219 true 1.5,0.969 1.208,0.427 true 1.073,1.708 1.469,1.208 true 1.948,1.802 1.781,1.229 true 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 1.906,0.26 2.115,0.458 0.208,0.198 10 false HI 2.219,1.76 2.375,1.958 0.156,0.198 10 false E 1.292,1.781 1.448,1.979 0.156,0.198 10 false B 1.104,0.271 1.333,0.448 0.229,0.177 10 false LO 1.021,1.719 1.177,1.917 0.156,0.198 10 false B 1.927,1.802 2.083,2 0.156,0.198 10 false B
*a Component without harness connected
(Headlight Assembly LH)


Apply auxiliary battery voltage to the headlight assembly LH and check that the lights illuminate.

OK:
Daytime running light
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 6 (B)
Auxiliary battery negative (-) → Terminal 5 (E) 		Daytime running light illuminates


OK:
Clearance light
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 7 (B)
Auxiliary battery negative (-) → Terminal 5 (E) 		Clearance light illuminates


OK:
Lo beam headlight
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (LO)
Auxiliary battery negative (-) → Terminal 5 (E) 		Lo beam headlight illuminates


OK:
Hi beam headlight
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (LO) and 3 (HI)
Auxiliary battery negative (-) → Terminal 5 (E) 		Hi beam headlight illuminates


OK:
Turn signal light
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 8 (B)
Auxiliary battery negative (-) → Terminal 5 (E) 		Turn signal light illuminates



If the result is not as specified, replace the headlight assembly LH.


Hide 81110 4.INSPECT HEADLIGHT ASSEMBLY RH (w/ Projector Headlight)

a.

Illumination Inspection

1.
E402294C04
1.656,0.948 1.938,0.427 true 2.229,1.76 1.938,1.219 true 1.354,1.792 1.635,1.219 true 1.5,0.969 1.208,0.427 true 1.073,1.708 1.469,1.208 true 1.948,1.802 1.781,1.229 true 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 1.906,0.26 2.115,0.458 0.208,0.198 10 false HI 2.219,1.76 2.375,1.958 0.156,0.198 10 false E 1.292,1.781 1.448,1.979 0.156,0.198 10 false B 1.104,0.271 1.333,0.448 0.229,0.177 10 false LO 1.021,1.719 1.177,1.917 0.156,0.198 10 false B 1.927,1.802 2.083,2 0.156,0.198 10 false B
*a Component without harness connected
(Headlight Assembly RH)


Apply auxiliary battery voltage to the headlight assembly RH and check that the lights illuminate.

OK:
Daytime running light
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 6 (B)
Auxiliary battery negative (-) → Terminal 5 (E) 		Daytime running light illuminates


OK:
Clearance light
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 7 (B)
Auxiliary battery negative (-) → Terminal 5 (E) 		Clearance light illuminates


OK:
Lo beam headlight
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (LO)
Auxiliary battery negative (-) → Terminal 5 (E) 		Lo beam headlight illuminates


OK:
Hi beam headlight
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (LO) and 3 (HI)
Auxiliary battery negative (-) → Terminal 5 (E) 		Hi beam headlight illuminates


OK:
Turn signal light
Measurement Condition Specified Condition
Auxiliary battery positive (+) → Terminal 8 (B)
Auxiliary battery negative (-) → Terminal 5 (E) 		Turn signal light illuminates



If the result is not as specified, replace the headlight assembly RH.
