RM38N0EC _59 Vehicle Exterior _111834 LIGHTING (EXT) _0499887 LIGHTING SYSTEM W

LIGHTING (EXT)  LIGHTING SYSTEM  CUSTOMIZE PARAMETERS


CUSTOMIZE LIGHTING SYSTEM (EXT)


NOTICE:
·

When the customer requests a change in a function, first make sure that the function can be customized.

·

Be sure to make a note of the current settings before customizing.

·

When troubleshooting a function, first make sure that the function is set to the default setting.



HINT:

The following items can be customized.


a.

Customizing with the GTS

i.

Enter the following menus: Customize Setting / Light Control or Warning.


ii.

Select the setting by referring to the table below.

Light Control
Tester Display Description Default Setting ECU
Tail Remind Buzzer Function Sounds a buzzer when the driver door is opened with the light control switch in the tail or head position. Enable $00:Disable,$01:Enable Main Body ECU (Multiplex Network Body ECU)
Automatic Light Off Timing Setting Taillight off timing setting when light control switch is in tail or head position. Door Open $00:IG OFF,$01:Door Open Main Body ECU (Multiplex Network Body ECU)
Response Time Adjust Changes the delay timing of lighting the taillights when going into a tunnel when the light control switch is in the AUTO position. Normal $00:Normal,$01:Long Main Body ECU (Multiplex Network Body ECU)
Brightness Level Adjust (Lowering) Changes the ambient brightness level required to dim the lights such as the indicator lights of the combination meter, A/C indicator light and clock.*A Normal $00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2 Main Body ECU (Multiplex Network Body ECU)
Brightness Level Adjust (Canceling) Changes the ambient brightness level required to cancel the dimming of the lights such as the indicator lights of the combination meter, A/C indicator light and clock.*B Normal $00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2 Main Body ECU (Multiplex Network Body ECU)
Sensitivity Adjust Adjusts the sensitivity of the automatic light control system.*C Normal $00:Normal,$01:Dark2,$02:Dark1,$03:Light1,$04:Light2 Main Body ECU (Multiplex Network Body ECU)
50006 8
HINT:

The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle.


*A

E259624E01
0.375,0.333 2.292,0.708 1.917,0.375 10 Brightness level required to dim the lights 2.771,0.542 3.385,0.74 0.615,0.198 10 Dark 6.281,0.542 6.896,0.74 0.615,0.198 10 Bright 1.083,1.104 1.729,1.333 0.646,0.229 10 Setting 2.667,1.104 3.313,1.333 0.646,0.229 10 DARK2 3.521,1.104 4.167,1.333 0.646,0.229 10 DARK1 4.406,1.104 5.083,1.333 0.677,0.229 10 NORMAL 5.333,1.104 6.01,1.333 0.677,0.229 10 LIGHT1 6.177,1.104 6.76,1.313 0.583,0.208 10 LIGHT2

*B

E259624E02
0.323,0.302 2.427,0.698 2.104,0.396 10 false Brightness level required to cancel the dimming of the lights 1.104,1.094 2,1.365 0.896,0.271 10 false Setting 2.781,0.531 3.333,0.781 0.552,0.25 10 false Dark 6.313,0.542 6.865,0.792 0.552,0.25 10 false Bright 2.688,1.115 3.24,1.365 0.552,0.25 10 false DARK2 3.573,1.115 4.125,1.365 0.552,0.25 10 false DARK1 4.396,1.115 5.042,1.344 0.646,0.229 10 false NORMAL 6.229,1.115 6.781,1.365 0.552,0.25 10 false LIGHT2 5.344,1.115 5.896,1.365 0.552,0.25 10 false LIGHT1

*C

E259624E03
0.365,0.302 2.354,0.708 1.99,0.406 10 Sensitivity of the automatic light control system 1.104,1.094 2,1.365 0.896,0.271 10 Setting 2.781,0.531 3.333,0.781 0.552,0.25 10 Dark 6.313,0.542 6.865,0.792 0.552,0.25 10 Bright 2.719,1.115 3.271,1.365 0.552,0.25 10 Dark2 3.615,1.115 4.167,1.365 0.552,0.25 10 Dark1 4.469,1.115 5.021,1.365 0.552,0.25 10 Normal 6.271,1.115 6.823,1.365 0.552,0.25 10 Light2 5.375,1.115 5.927,1.365 0.552,0.25 10 Light1


Warning
Tester Display Description Default Setting ECU
Lane Change Flashing Times Adjust Function to change the lane change flashing times. 3 $00:OFF,$01:3,$02:4,$03:5,$04:6,$05:7 Combination Meter Assembly
50006 7


b.

Customizing with the multi-display

i.

Turn the ignition switch to ON.


ii.

Enter the following menus: Vehicle icon / Vehicle settings.


iii.

Select the setting by referring to the table below.

Display Default Content Setting Relevant ECU
Headlights Auto-on Sensitivity 0 Adjusts the sensitivity of the automatic light control system.*A -2, -1, 0, +1 or +2 Main Body ECU (Multiplex Network Body ECU)
Headlights Auto-off Timer 30 sec. Keeps the headlights on for a certain period of time after turning the ignition switch off and closing all of doors with the low beam headlights on. Off, 30 sec., 60 sec. or 90 sec. Main Body ECU (Multiplex Network Body ECU)

HINT:

The sensitivity adjustment may be difficult to confirm. Check by driving the vehicle.

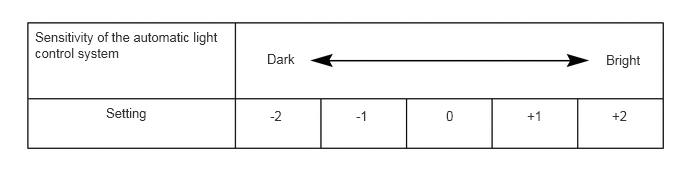

*A

E259624E05
0.365,0.302 2.354,0.708 1.99,0.406 10 Sensitivity of the automatic light control system 1.104,1.094 2,1.365 0.896,0.271 10 Setting 2.781,0.531 3.333,0.781 0.552,0.25 10 Dark 6.313,0.542 6.865,0.792 0.552,0.25 10 Bright 2.813,1.125 3.365,1.375 0.552,0.25 10 -2 3.708,1.125 4.26,1.375 0.552,0.25 10 -1 4.646,1.125 5.198,1.375 0.552,0.25 10 0 6.375,1.125 6.729,1.323 0.354,0.198 10 +2 5.49,1.125 5.854,1.333 0.365,0.208 10 +1
